01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)

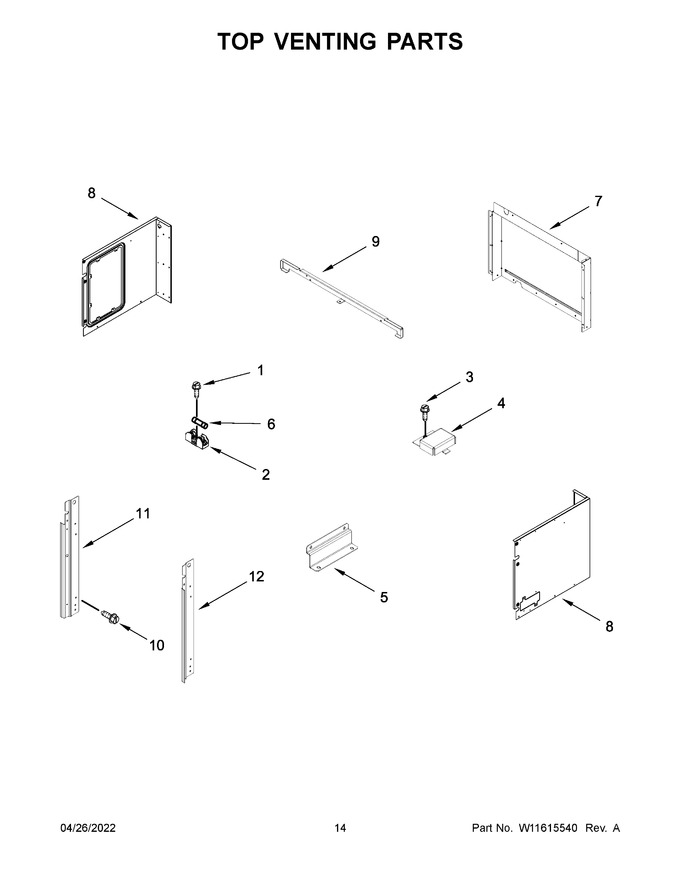

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P06060		Screw		Appelez-nous	-
2	4454949		Holder, Fuse				$ 95.24
3	7101P42660		Screw		Appelez-nous	-
4	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
5	W10283024		Side, Bracket				$ 78.86
6	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 22.23
7	W11171004		Cover, Combo Chassis Back Duct				$ 74.55
8	W11171909		Chassis, Combo Side (left)				$ 72.95
9	W10283022		Support, Crossbar				$ 81.32
10	7101P65360		Screw		Appelez-nous	-
11	W11627410		Rail, Side (left)   (Replaces: W11235470)				$ 61.70
12	W11627411		Rail, Side (right)   (Replaces: W11235471)				$ 59.61
8A	W11171919		Chassis, Combo Side (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
