01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

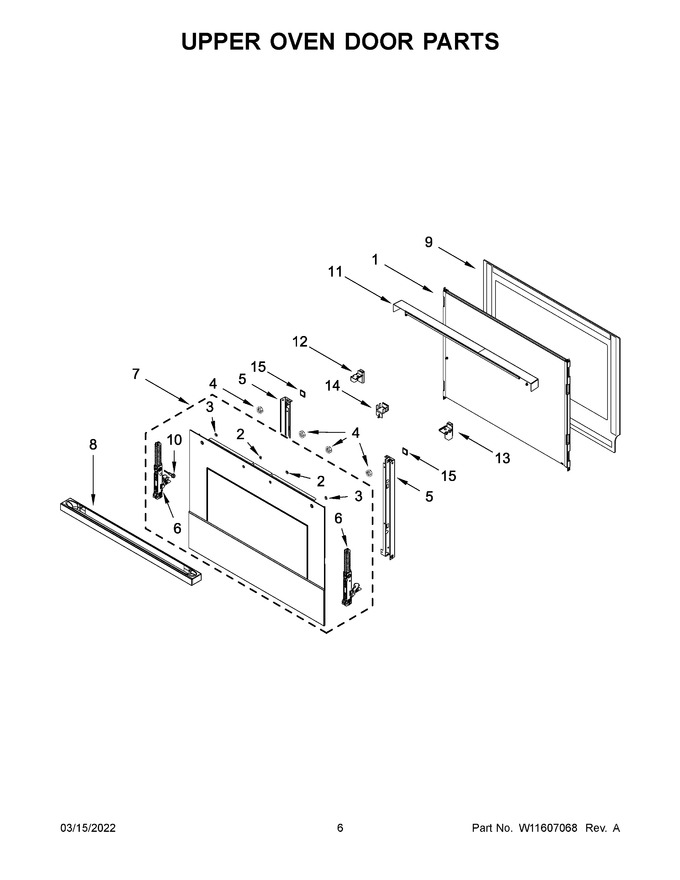

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11600213 | Air Divider Assembly (Replaces: W11304273) |
|
Immediately | $ 575.43 | ||||
| 2 | W11132942 | Spacer, Handle |
|
$ 16.83 | |||||
| 3 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 4 | W11602632 | Nut (Replaces: W11317741) |
|
- | |||||
| 5 | W11598126 | Rail, Door (left) (Replaces: W11302773) |
|
$ 43.61 | |||||
| 6 | W11111221 | Hinge, Door (left) |
|
Immediately | $ 185.63 | ||||
| 7 | W11602611 | Door Assembly (includes Hinges) (stainless) (Replaces: W11287485) |
|
$ 1,252.36 | |||||
| 8 | W11411894 | Assembly, Handle (stainless) |
|
$ 1,067.98 | |||||
| 9 | W11602610 | Glass Cavity Assembly (Replaces: W11260091) |
|
$ 592.35 | |||||
| 10 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 11 | W11705878 | Top Vent Trim Assembly (Replaces: W11428090) |
|
Immediately | $ 333.41 | ||||
| 12 | W11598130 | Bracket, Glass (left) (Replaces: W11302803) |
|
$ 46.95 | |||||
| 13 | W11598128 | Bracket, Glass (right) (Replaces: W11302802) |
|
$ 46.95 | |||||
| 14 | W11598131 | Bracket, Glass Reinforcement (Replaces: W11302954) |
|
$ 13.72 | |||||
| 15 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 12.44 | ||||
| 5A | W11598127 | Rail, Door (right) (Replaces: W11302780) |
|
$ 43.61 | |||||
| 6A | W11111222 | Hinge, Door (right) |
|
$ 133.43 |
