Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11600219 Assembly, Control Panel (stainless)   (Replaces: W11304130) Special Order $ 884.18

2 W10588741 Skin, Control Panel (stainless) Special Order $ 241.78

3 W11621193 Interface, User   (Replaces: W11440274) In-Stock Immediately $ 544.76

4 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72

5 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78


    View Diagram in Separate Window     Print Icon   Print Part List

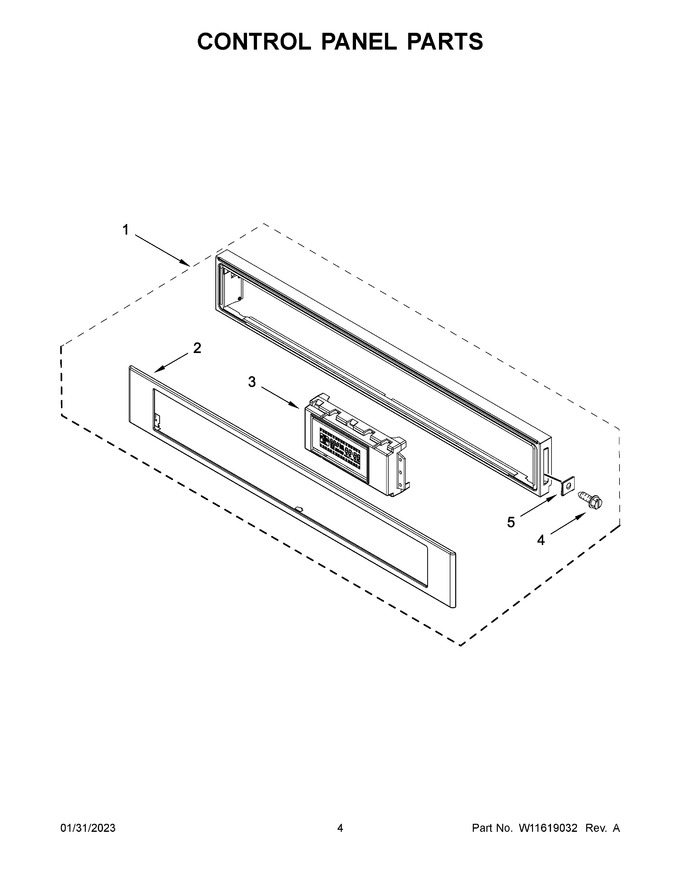

Diagram for KMBP107ESS20
