View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

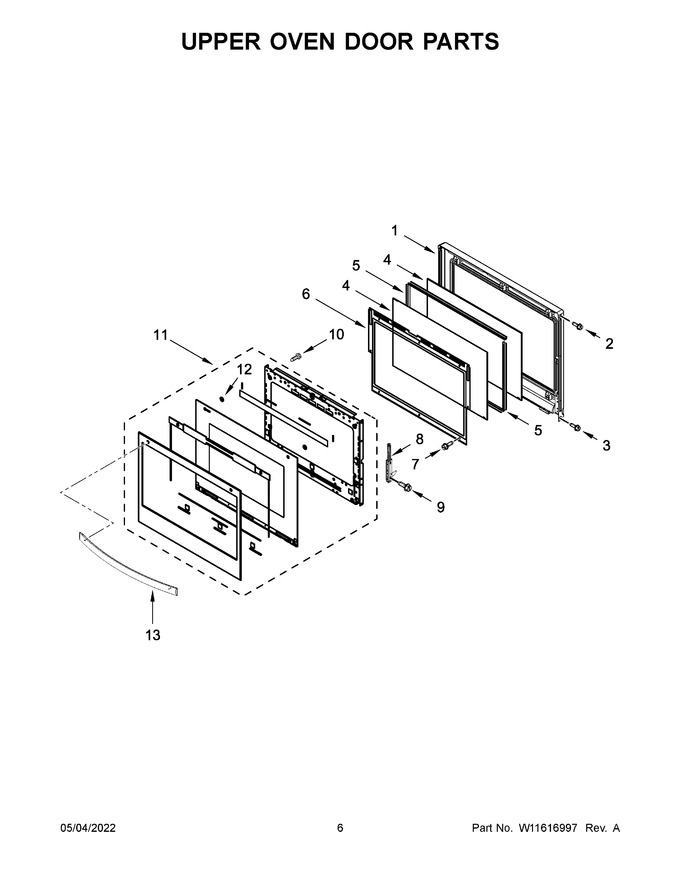

04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 303.81 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11302730) |
|
Immediately | $ 72.09 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11744485 | Hinge, Door (left) (Replaces: W11296077) |
|
$ 155.23 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 14.75 | ||||
| 11 | W11600322 | Door Assembly (stainless) (Replaces: W11296059) |
|
Immediately | $ 864.63 | ||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 13 | W11110499 | Handle, Door (stainless) (Replaces: W10875206) |
|
Immediately | $ 188.20 | ||||
| 11A | W11600348 | Door Assembly (black Stainless) (Replaces: W11286336) |
|
- | |||||
| 13A | W11110500 | Handle Assembly (black Stainless) (Replaces: W10903342) |
|
$ 195.52 | |||||
| 8A | W11296078 | Hinge, Door (right) |
|
$ 86.55 |
