01 - Cover Sheet

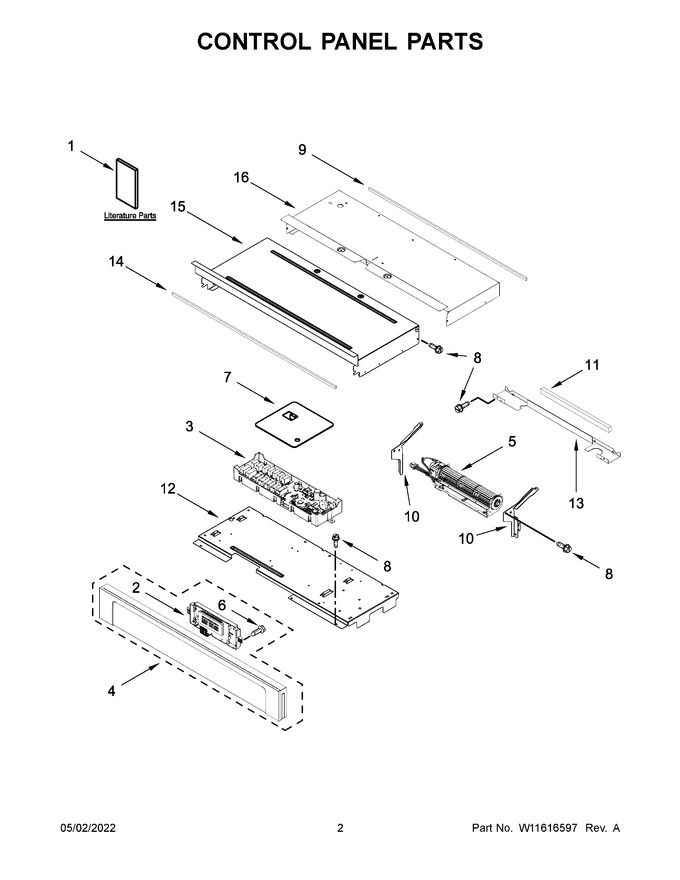

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340821		Owner's Manual		Appelez-nous	-
2	W10803991		Interface (maxwell), User Board   (Replaces: W10752315)			Immediately	$ 420.04
3	W11598254		Control Assembly. Maxwell   (Replaces: W11249193)			Immediately	$ 377.01
4	W11616687		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11361874)			Immediately	$ 480.55
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	7101P40360		Screw		Appelez-nous	-
7	W11819353		Cover, Wifi   (Replaces: W11308343)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W10728475		Gasket, Rubber				$ 38.13
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11179509		Tray, Electronic		Appelez-nous	-
13	W11166802		Divider, Chassis Back		Appelez-nous	-
14	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
15	W11821591		Cover, 30" Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
16	W11223325		Cover, 30" Chassis Top Back				$ 85.77
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11419188		Quick Start Guide		Appelez-nous	-
1B	W11419190		Tech Sheet		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 13.47
NI	W11245656		Harness, Main			Immediately	$ 187.98
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 15.39
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
