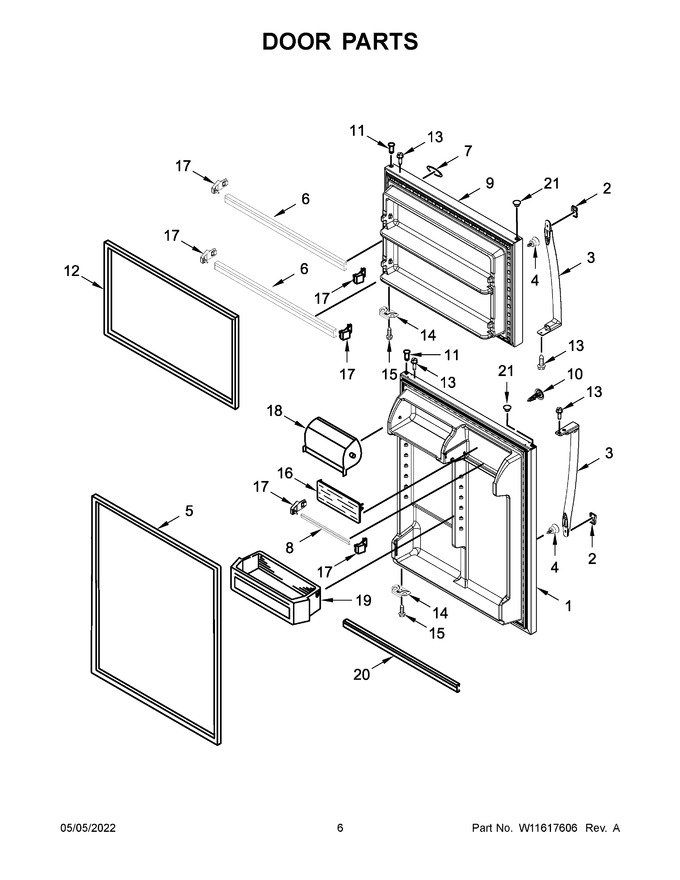

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10916047 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W10916047) |
|
- | |||||
| 2 | W11519504 | Handle, Trim (gray) (Replaces: W11374428) |
|
Immediately | $ 50.43 | ||||
| 3 | W10806512 | Handle, Door (stainless) (Replaces: W10653470) |
|
Immediately | $ 248.91 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10249195 | Gasket, Door (grey) (Replaces: W11406600) |
|
$ 335.80 | |||||
| 6 | W11596065 | Trim, Door (Replaces: W11230196) |
|
$ 98.26 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | W11678258 | Trim, Door (Replaces: W10720455) |
|
$ 88.14 | |||||
| 9 | LW10916048 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10916048) |
|
- | |||||
| 10 | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 19.54 | ||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 12 | W10249196 | Gasket, Door (grey) (Replaces: W11406598) |
|
Immediately | $ 279.10 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WP2188236 | Door, Flip Up (Replaces: 2188236) |
|
$ 64.38 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | W11617783 | Door, Compartment (Replaces: W11455931) |
|
$ 76.28 | |||||
| 19 | W10803530 | Bin, Door (Replaces: W10582649) |
|
$ 75.88 | |||||
| 20 | W11606660 | Trim, Door (Replaces: W11230195) |
|
Immediately | $ 32.61 | ||||
| 21 | WP2254517 | Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| NI | W10676240 | Door Reversal Kit Stainless Model |
|
$ 112.54 | |||||
| NI | NP | Rail, Center (not Serviced) |
|
- |
