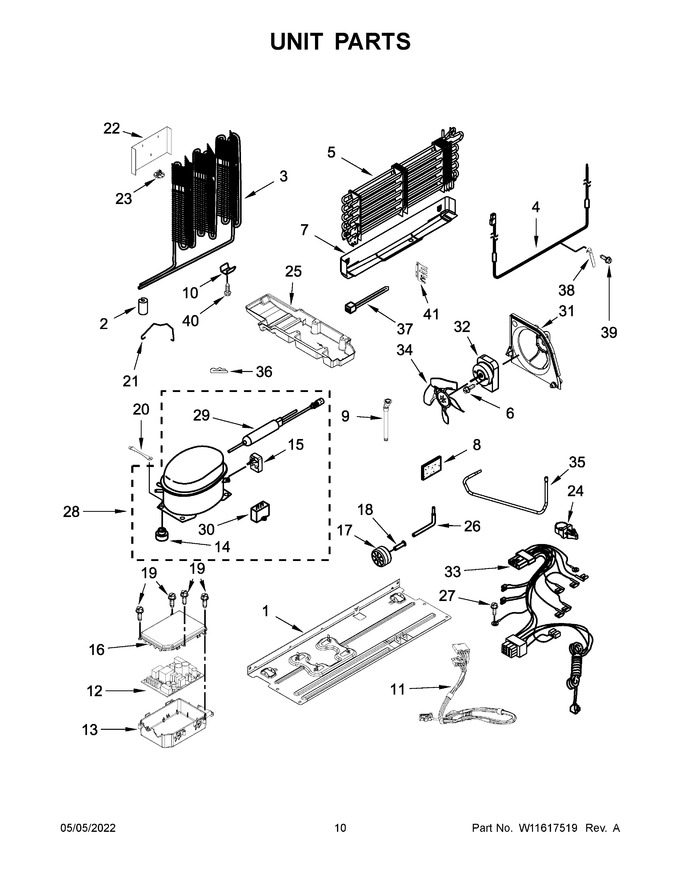

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 147.87 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 3 | WPW10342567 | Condenser (also Order The Following Lokring Parts) (Replaces: W10342567) |
|
$ 250.38 | |||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 80.79 | ||||
| 5 | W11611030 | Assembly, Evaporator (also Order The Following Lokring Parts) (Replaces: W11393935) |
|
Immediately | $ 198.67 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 41.90 | |||||
| 8 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 9 | W11284510 | Tube, Drain (Replaces: W11115756) |
|
$ 63.48 | |||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 11 | W11632351 | Assembly, Low Voltage Wire (Replaces: W11515411) |
|
$ 22.00 | |||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 302.18 | ||||
| 13 | 2323186 | Box, Control |
|
$ 96.73 | |||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 7.66 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 41.31 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 70.19 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 21 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 22 | W10349514 | Cover, Condenser Bottom |
|
$ 74.16 | |||||
| 23 | W10815861 | Clip, Bottom Cover |
|
$ 14.22 | |||||
| 24 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 25 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 136.76 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 28 | W11580057 | Compressor (also Order The Following Lokring Parts) (Replaces: W11369198) |
|
Immediately | $ 360.14 | ||||
| 29 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 31 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 74.27 | ||||
| 32 | WP2188874 | Motor, Condenser (Replaces: W10530280) |
|
Immediately | $ 111.76 | ||||
| 33 | W11432778 | Assembly, Unit Wire Harness |
|
Immediately | $ 103.35 | ||||
| 34 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 91.34 | ||||
| 35 | W11741026 | Tube, Suction (Replaces: W11518248) |
|
$ 54.30 | |||||
| 36 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.89 | ||||
| 37 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 38 | W11611126 | Heat Probe (Replaces: W11558549) |
|
$ 20.84 | |||||
| 39 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 40 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 41 | W11466555 | Bracket, Evaporator |
|
$ 31.01 | |||||
| 28A | W11506619 | 8 Nk Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 23.29 | ||||
| 28B | W11578570 | 7/4.5 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 57.86 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 23.29 | ||||
| 29A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 26.03 | ||||
| 29B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 39.51 | ||||
| 3A | W11578570 | 7/4.5 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 57.86 | ||||
| 3B | W11506624 | 4 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 18.85 | ||||
| 5A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 41.87 | ||||
| 5B | W11506619 | 8 Nk Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 23.29 | ||||
| NI | NP | Rail, Center (not Serviced) |
|
- |
