SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

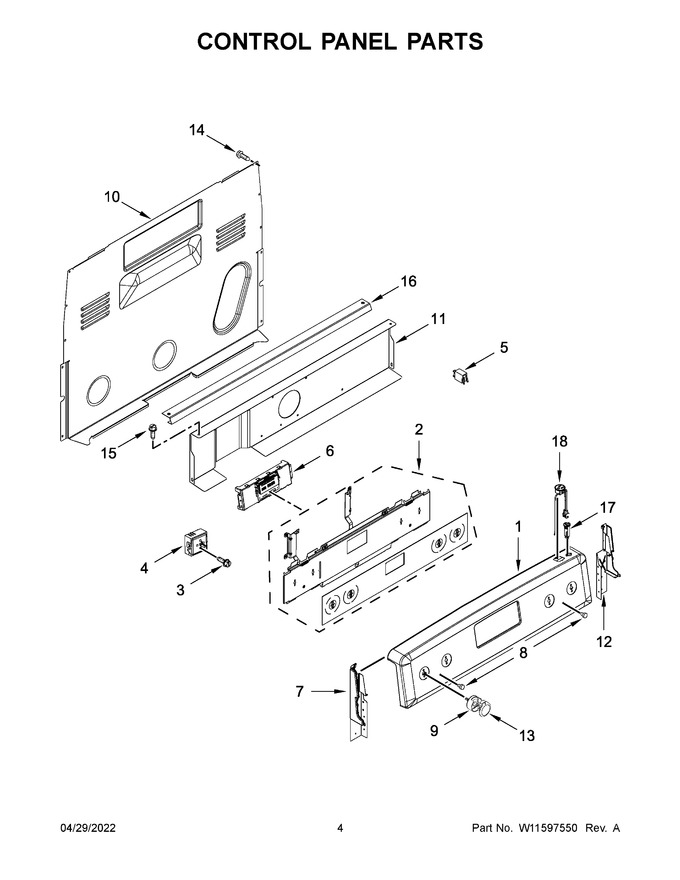

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11084228		Console (black Stainless)   (Replaces: W11024860)				$ 561.98
2	W11527488		Assembly, Active Overlay (black)				$ 321.72
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 239.88
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 101.96
6	W11088877		Control, Maxwell   (Replaces: W10894863)			Immediately	$ 399.24
7	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
9	W11368920		Bezel, Knob   (Replaces: W10645811)			Immediately	$ 60.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10134247		Shield, Heat			Immediately	$ 358.82
12	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
13	W10915061		Knob (stainless)   (Replaces: W10823535)			Immediately	$ 74.50
14	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
16	W10525121		Bracket, Console Mounting				$ 98.85
17	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 60.91
18	W10861164		Receptacle, Fused (black)   (Replaces: W10749729)			Immediately	$ 18.47
4A	W10917724		Switch, Infinite (right Front)   (Replaces: W10437094)			Immediately	$ 129.35
4B	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 115.27

    View Diagram in Separate Window       Print Part List
