View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Ice Maker Parts

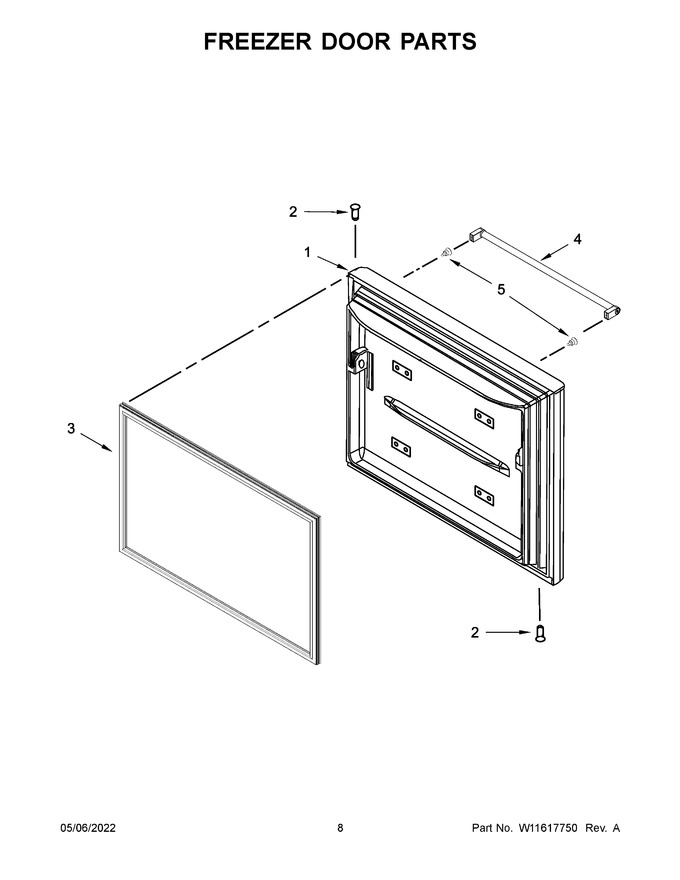

04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10865766 | Door, Freezer (includes Items 2 & 3) (black Stainless) (Replaces: W10865766) |
|
$ 750.93 | |||||
| 2 | W11544568 | Thimble (Replaces: W10366270) |
|
Immediately | $ 12.56 | ||||
| 3 | W11625017 | Gasket, Door (black) (Replaces: W11464961) |
|
$ 305.72 | |||||
| 4 | W11527076 | Assembly, Handle (stainless) (Replaces: W11222207) |
|
Immediately | $ 166.94 | ||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 2A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 |
