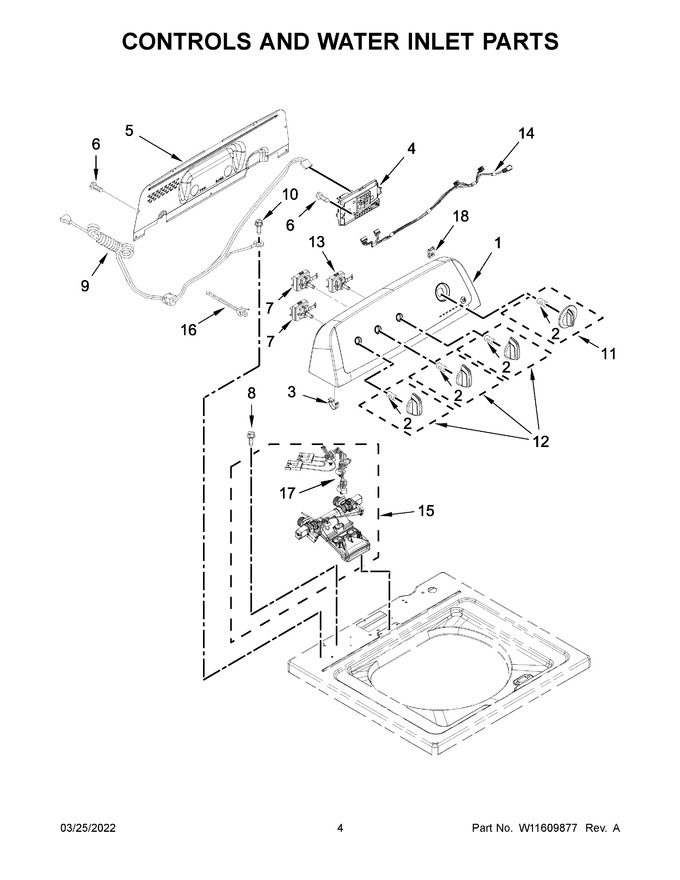

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10774510		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	W11607627		Control Unit Assembly, Machine & Motor   (Replaces: W11577214)				$ 368.27
5	W10409320		Panel, Console Rear Cover				$ 263.79
6	W11685943		Screw   (Replaces: W10660565)				$ 14.97
7	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 199.56
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
9	W10790420		Cord, Universal Power		Appelez-nous	-
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 54.76
13	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
14	W10694671		Harness, Upper				$ 190.60
15	W11614511		Inlet Assembly, Water   (Replaces: W11361463)		Appelez-nous	-
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
17	W10701401		Harness, Valve				$ 178.13
18	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 21.75
