SELECT A DIAGRAM

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information

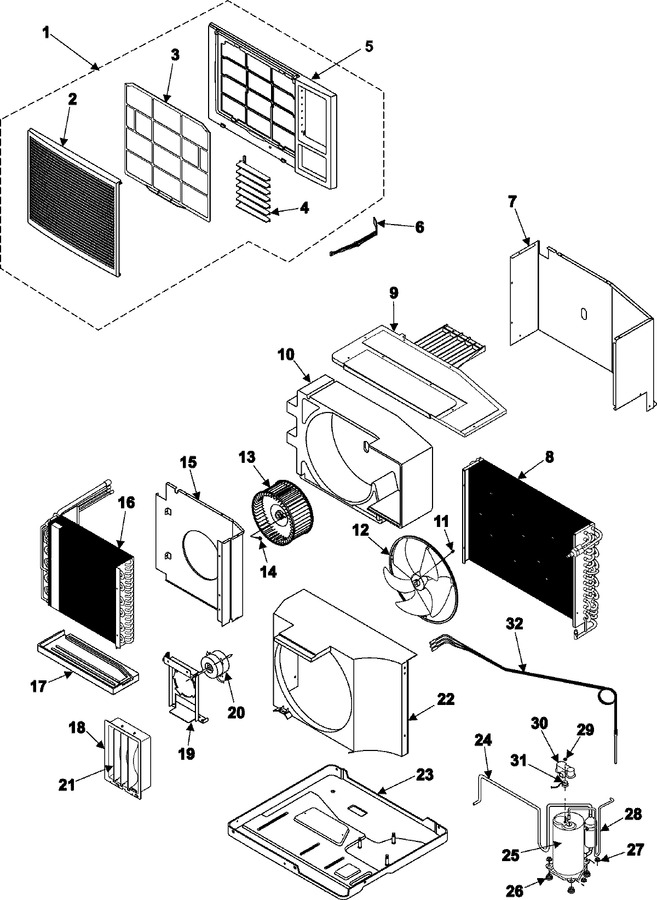

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-70101F		Assy-panel-front		Appelez-nous	-
2	Y00000000		See Note Assy Grille Currently Unavailable		Appelez-nous	-
3	DB63-30167C		Guard-air-filter		Appelez-nous	-
4	DB66-30205A		Blade-h		Appelez-nous	-
5	DB64-70102A		Panel-front		Appelez-nous	-
6	DB66-70024A		Lever-damper				$ 50.00
7	DB70-10679A		Plate-partition		Appelez-nous	-
8	DB96-00268A		Assy Tube Cond In		Appelez-nous	-
8	DB96-01037A		Assy Cond		Appelez-nous	-
9	DB63-10487A		Cover-evap		Appelez-nous	-
9	DB90-40174A		Assy-cover,evap		Appelez-nous	-
10	DB61-10182A		Case-evap		Appelez-nous	-
11	DB60-30028A		Nut-washer		Appelez-nous	-
12	DB67-00047A		Fan, Propeller		Appelez-nous	-
13	DB67-00096A		Blower				$ 59.18
14	6021-001056		Nut-hexagon Flange		Appelez-nous	-
15	DB96-00026B		Ssy Evap-plate Casing		Appelez-nous	-
16	DB96-01047A		Assy Evap		Appelez-nous	-
17	DB63-40019A		Tray-drain		Appelez-nous	-
18	DB90-50161E		Assy Frame-blade		Appelez-nous	-
19	DB61-00440A		Mount Motor		Appelez-nous	-
20	DB31-00106A		Motor Fan		Appelez-nous	-
21	DB61-60125A		Frame-blade		Appelez-nous	-
22	DB61-00448A		Case Cond		Appelez-nous	-
23	DB90-00304B		Assy Base		Appelez-nous	-
24	DB62-00673A		Tube Suction		Appelez-nous	-
25	Y00000000		See Note Rotary Compressor Currently Unavailablee		Appelez-nous	-
26	DB73-00082A		Grommet-isolator		Appelez-nous	-
27	DB60-30028A		Nut-washer		Appelez-nous	-
28	DB62-00672A		Tube Discharge		Appelez-nous	-
29	DB60-30018A		Nut-flange		Appelez-nous	-
30	DB63-10026A		Cover-terminal		Appelez-nous	-
31	Y00000000		See Note Olp Currently Unavailable		Appelez-nous	-
32	DB62-00671A		Tube Capillary		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
