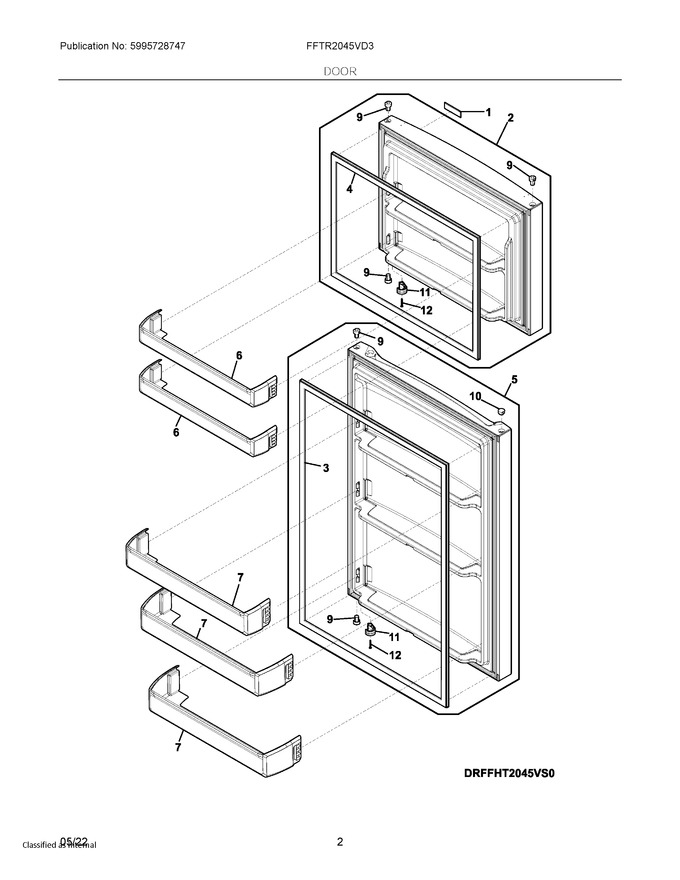

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304510903 | Badge, Frigidaire, Black Stainless |
|
$ 56.46 | |||||
| 2 | 5304529523 | Door-frz Foamed Ss Blk W30 Pk |
|
$ 342.46 | |||||
| 3 | 5304528905 | Gasket, Door, Black, Fresh Food |
|
$ 227.91 | |||||
| 4 | 5304528906 | Gasket, Door, Black, Freezer |
|
Immediately | $ 207.72 | ||||
| 5 | 5304529517 | Door-ff Foamed 30w Pk Blkss |
|
$ 423.41 | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 56.23 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 90.07 | ||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.53 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 8.27 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 9.27 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 | ||||
| NI | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 |
