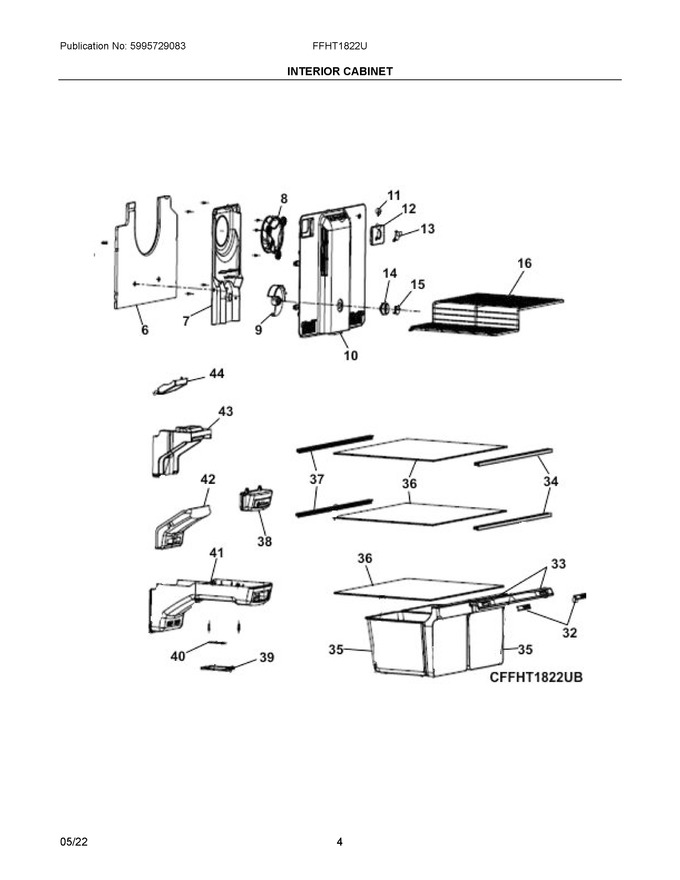

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304529314		Insulation, Air Duct, Rear Freezer		Appelez-nous	-
7	5304529315		Cover, Air Duct, Back		Appelez-nous	-
8	4056022561		Fan, Blower   (Replaces: 5304521548)			Immediately	$ 128.71
9	5304529316		Damper, Air Duct, Freezer				$ 26.54
10	5304533005		Cover, Air Duct, Front   (Replaces: 5304529317)				$ 75.84
11	5304518561		Cap, Screw		Appelez-nous	-
12	5304529318		Cover, Ice Maker Hole, Freezer		Appelez-nous	-
13	5304529319		Cover, Crossing, Air Duct		Appelez-nous	-
14	5304529320		Knob, Air Duct, Freezer		Appelez-nous	-
15	5304529321		Cover, Knob		Appelez-nous	-
16	4056041496		Shelf, Freezer   (Replaces: 5304529322)		Appelez-nous	-
32	5304529337		Slide, Control, Humidity		Appelez-nous	-
33	5304529338		Cover, Control, Humidity		Appelez-nous	-
34	5304529339		Trim, Shelf, Front				$ 30.34
35	5304529340		Drawer, Crisper				$ 88.63
36	4056060785		Glass, Shelf   (Replaces: 5304529341)		Appelez-nous	-
37	5304529342		Trim, Shelf, Rear				$ 50.06
38	5304529343		Control Assembly, Main			Immediately	$ 318.11
39	5304518511		Cover, Light				$ 50.85
40	5304518510		Light, Led			Immediately	$ 111.16
41	5304518509		Housing, Control Box				$ 113.09
42	5304518505		Insulation, Control Box, Lower				$ 87.21
43	5304518504		Insulation, Control Box, Upper				$ 100.11
44	5304518512		Trough, Water Collector				$ 60.78

    View Diagram in Separate Window       Print Part List
