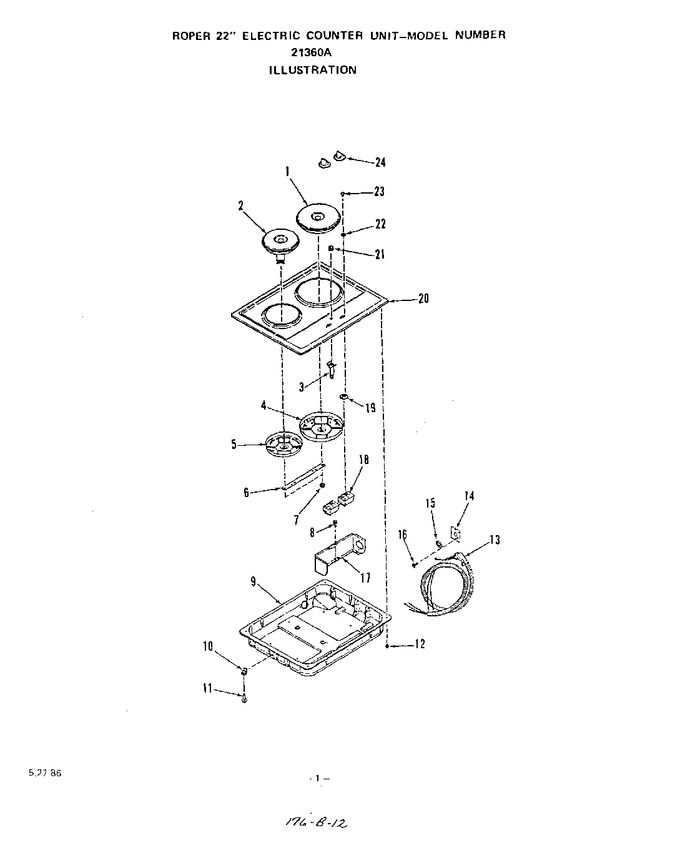

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3147132		Element-hob (large)   (Replaces: 329107)				$ 286.33
2	WP3147131		Element-hob (small)   (Replaces: 329106)				$ 257.00
3	288814		Indicator Light		Appelez-nous	-
4	329108		Clamp-hob Element (large)		Appelez-nous	-
5	329109		Clamp-hob Element (small)		Appelez-nous	-
6	335769		Strap-hob Element		Appelez-nous	-
7	329326		Mounting Nut		Appelez-nous	-
8	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
9	334213		Burner Box		Appelez-nous	-
10	334224		Retainer Clip		Appelez-nous	-
11	299271		Screw 10-32x1``		Appelez-nous	-
12	326974		Screw 10abx1/2``		Appelez-nous	-
13	334222		Harness Conduit Asm.		Appelez-nous	-
14	294983		Plate (for Key 13)		Appelez-nous	-
15	110340		Nut (for Key 13)		Appelez-nous	-
16	313191		Screw 10-32x7/16``		Appelez-nous	-
17	334221		Barrier		Appelez-nous	-
18	320949		Infinite Control		Appelez-nous	-
19	280157		Control Seal				$ 275.75
20	334832		Main Top (chrome)		Appelez-nous	-
20	334835		Main Top (almond)		Appelez-nous	-
21	233161		Indicator Light Lens		Appelez-nous	-
22	312604		Washer		Appelez-nous	-
23	70655		Screw 8-32x1/4``		Appelez-nous	-
24	328201		Infinite Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
