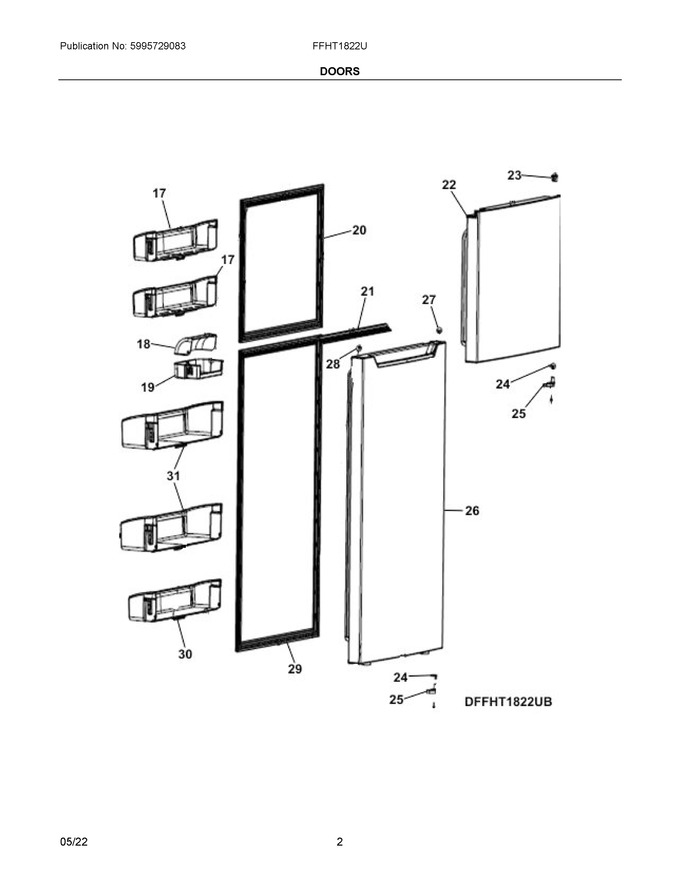

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304521519		Bin, Door			Immediately	$ 135.33
18	5304529323		Cover, Dairy Compt.				$ 35.00
19	5304529324		Rack, Door, Ff Upper				$ 57.64
20	5304531821		Gasket, Door, Black, Freezer		Appelez-nous	-
21	5304529326		Gasket, Sealing Strip				$ 27.45
22	5304531823		Door Assembly, Freezer, Black		Appelez-nous	-
23	5304534919		Bearing, Hinge, Upper Door   (Replaces: 5304529328)				$ 3.18
24	5304529329		Block, Door, Metal, Rh, Limit				$ 18.43
25	5304529330		Stopper, Door, Rh				$ 11.38
26	5304531824		Door Assembly, Fresh Food, Black		Appelez-nous	-
27	5304529332		Bearing, Hinge, Lower Door, Rh				$ 9.14
28	5304529333		Plug Button, Hinge Bearing		Appelez-nous	-
29	5304531825		Gasket, Door, Black, Fresh Food		Appelez-nous	-
30	5304529335		Rack, Lower, Fresh Food		Appelez-nous	-
31	5304529336		Rack, Upper, Fresh Food				$ 97.07
NI	5304518557		Badge, Nameplate, Black		Appelez-nous	-
