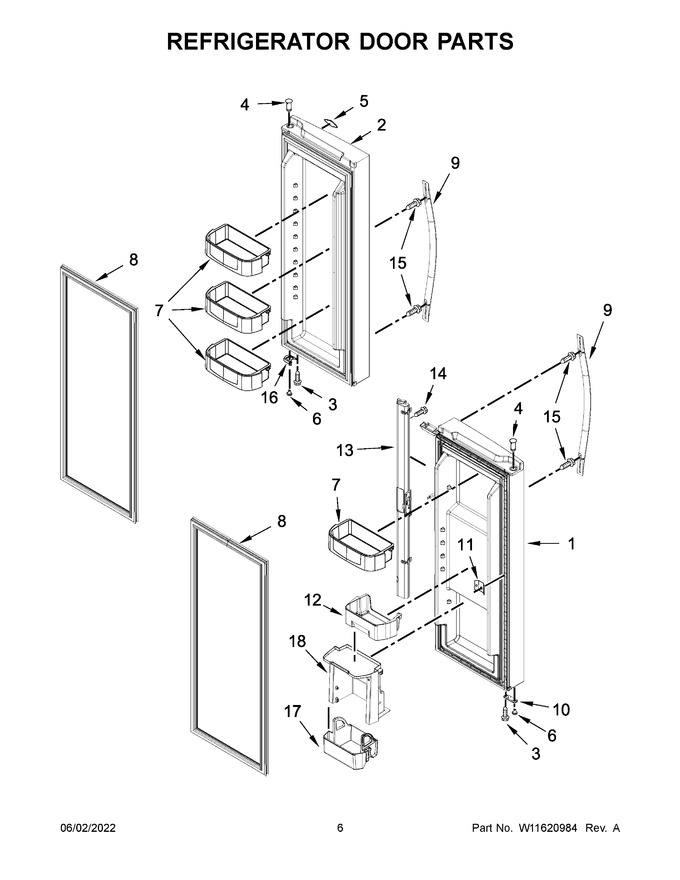

04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10858415 | Door, Left (includes #8) (stainless) (Replaces: W10858415) |
|
$ 915.73 | |||||
| 2 | LW10858417 | Door, Right (includes #8) (stainless) (Replaces: W10858417) |
|
$ 840.29 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble, Top (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 8 | WPW10460580 | Gasket (grey) (Replaces: W10413468) |
|
Immediately | $ 268.75 | ||||
| 9 | W11123099 | Handle Assembly (stainless) (Replaces: W11101971) |
|
Immediately | $ 190.44 | ||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 11 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 64.79 | ||||
| 13 | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10624450) |
|
Immediately | $ 237.78 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 15 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 17 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 106.98 | ||||
| 18 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 103.80 |
