View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

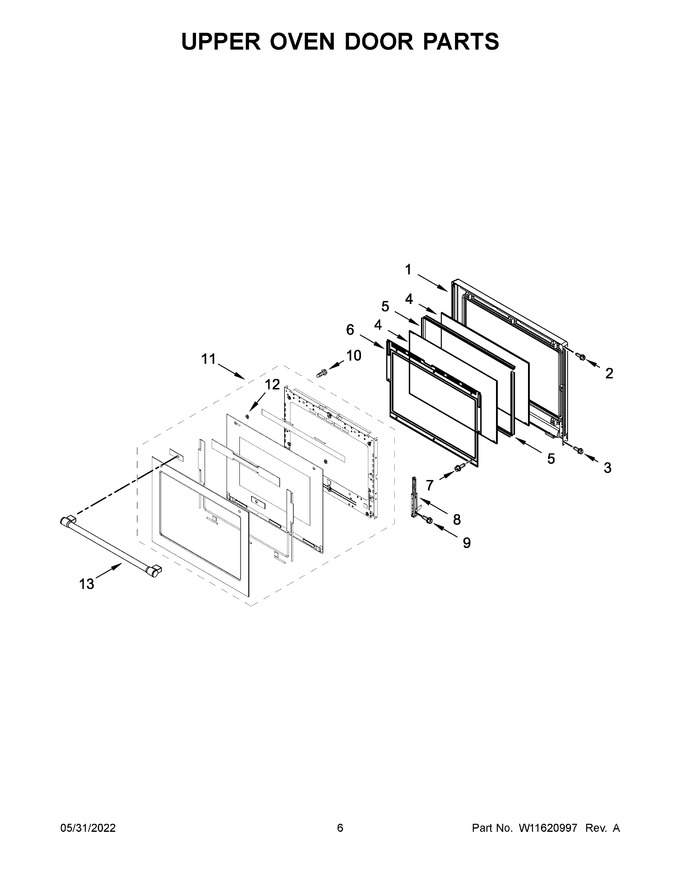

04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598186 | Liner Assembly (Replaces: W11302593) |
|
$ 371.00 | |||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10284902 | Glass, Inner (Replaces: W10618123) |
|
$ 229.81 | |||||
| 5 | W11736672 | Spacer, Air Divider (Replaces: W11302731) |
|
Immediately | $ 54.06 | ||||
| 6 | W11598188 | Retainer, Air Divider Glass (Replaces: W11204277) |
|
$ 81.84 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11598229 | Hinge, Door (left) (Replaces: W11394143) |
|
$ 86.14 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 14.75 | ||||
| 11 | W11600243 | Door Assembly (stainless) (Replaces: W11303471) |
|
- | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 13 | W10915198 | Handle Assembly (stainless) (Replaces: W10834519) |
|
- | |||||
| 8A | W11598230 | Hinge, Door (right) (Replaces: W11394144) |
|
$ 89.66 |
