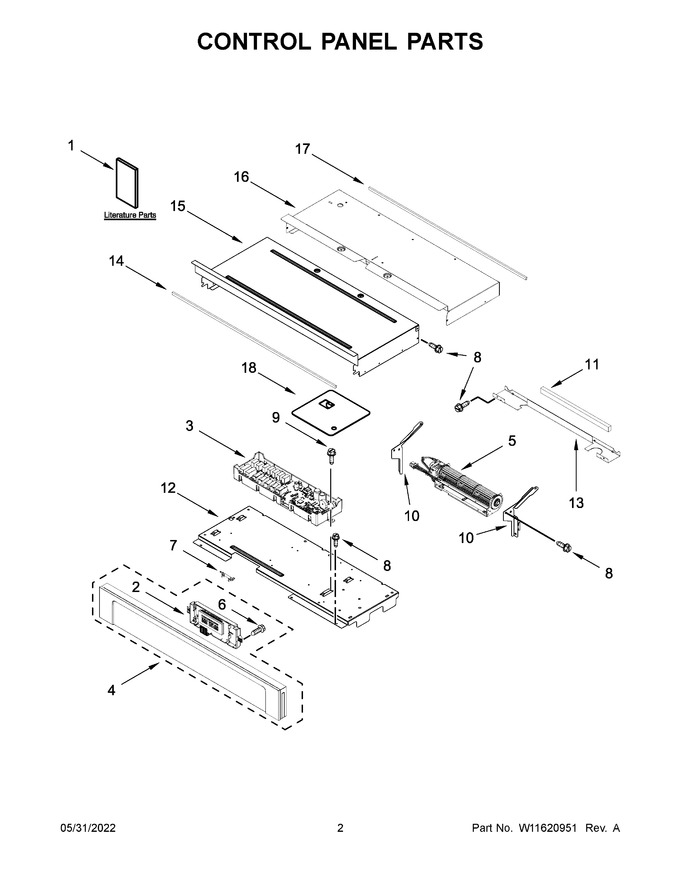

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340821 | Owner's Manual |
|
- | |||||
| 2 | W10803991 | Interface (maxwell), User Board (Replaces: W10752315) |
|
Immediately | $ 378.04 | ||||
| 3 | W11598254 | Control Assembly. Maxwell (Replaces: W11249193) |
|
Immediately | $ 339.31 | ||||
| 4 | W11616675 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11192767) |
|
$ 411.04 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 349.43 | ||||
| 6 | 7101P40360 | Screw |
|
- | |||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 25.43 | ||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W11179509 | Tray, Electronic |
|
- | |||||
| 13 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 14 | W11226313 | Gasket, Rubber (652mm) (Replaces: W11162062) |
|
$ 21.96 | |||||
| 15 | W11244469 | Cover, Top Front 27" Chassis |
|
- | |||||
| 16 | W11244459 | Chassis, Cover Top Back 27 |
|
- | |||||
| 17 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 18 | W11819353 | Cover, Wifi (Replaces: W11308343) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11419188 | Quick Start Guide |
|
- | |||||
| 1B | W11419190 | Tech Sheet |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11607072 | Bag, Hardware (Replaces: W11547720) |
|
Immediately | $ 13.85 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 55.62 | |||||
| NI | W11245656 | Harness, Main |
|
Immediately | $ 169.18 | ||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 208.52 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 |
