SELECT A DIAGRAM

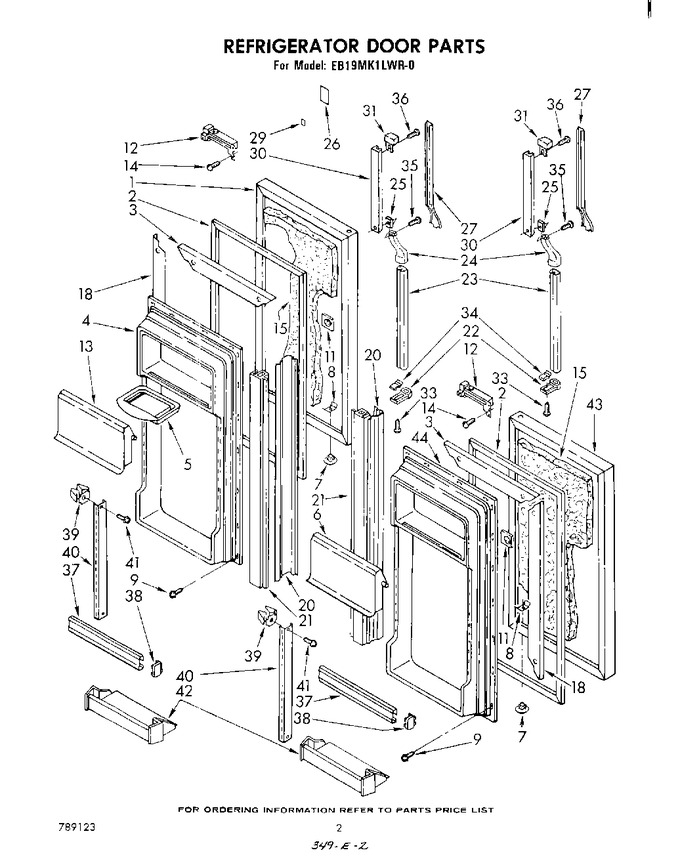

02 - Refrigerator Door


03 - Freezer Door, Lit/optional


04 - Cabinet


05 - Liner


06 - Interior


07 - Breaker And Control


08 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101495		Door, Refrigerator (r.h.) (also Order Item 15) (toast)		Appelez-nous	-
1	1101496		Door, Refrigerator (r.h.) (also Order Item 15) (platinum)		Appelez-nous	-
1	944395		Door, Refrigerator (r.h.) (also Order Item 15) (white)		Appelez-nous	-
1	944396		Door, Refrigerator (r.h.) (also Order Item 15) (coffee)		Appelez-nous	-
1	944398		Door, Refrigerator (r.h.) (also Order Item 15) (new Avocado)		Appelez-nous	-
1	944397		Door, Refrigerator (r.h.) (also Order Item 15) (golden Harvest)		Appelez-nous	-
1	944399		Door, Refrigerator (r.h.) (also Order Item 15) (almond)		Appelez-nous	-
2	992582		Gasket, Refrigerator Door (2) (for Platinum Model Only)		Appelez-nous	-
2	945092		Gasket, Refrigerator Door (2)		Appelez-nous	-
3	992580		Retainer Gasket, Top & Bottom (2)		Appelez-nous	-
4	1101508		Interior Door Panel (r.h.) (for Platinum Model Only)		Appelez-nous	-
4	945090		Interior Door Panel (r.h.)		Appelez-nous	-
5	520747		Tray, Butter		Appelez-nous	-
6	992597		Door, Utility		Appelez-nous	-
7	534927		Plug, Hole (2)		Appelez-nous	-
8	945012		Plate, Tap		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
11	941242		Screw Anchor		Appelez-nous	-
12	991877		Door Closer (2)		Appelez-nous	-
13	992596		Door, Butter		Appelez-nous	-
14	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 8.28
15	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
18	986008		Retainer, Gasket (side)		Appelez-nous	-
20	992581		Retainer, Gasket Mullion (2)		Appelez-nous	-
21	946947		Door Gasket, Mullion (2)		Appelez-nous	-
21	1101510		Door Gasket, Mullion (for Platinum Model Only)		Appelez-nous	-
22	944157		Cap, Handle		Appelez-nous	-
23	935089		Handle, Center (new Avocado)		Appelez-nous	-
23	935090		Handle, Center (golden Harvest)		Appelez-nous	-
23	945099		Handle, Center (almond Model)		Appelez-nous	-
23	1101503		Handle, Center (toast)		Appelez-nous	-
23	1101504		Handle, Center (platinum)		Appelez-nous	-
23	945098		Handle, Center (white & Coffee)		Appelez-nous	-
24	935103		Cap, Handle (center)		Appelez-nous	-
25	935075		Shim, Handle		Appelez-nous	-
26	945116		Insert, Nameplate		Appelez-nous	-
27	941994		Insert, Handle		Appelez-nous	-
29	991259		Tape		Appelez-nous	-
30	941993		Retainer, Insert		Appelez-nous	-
31	941259		End Cap, Insert Retainer		Appelez-nous	-
33	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.98
33	488923		Screw (repair)		Appelez-nous	-
34	943188		Spacer, Handle				$ 7.80
35	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
36	489075		Screw, 10-32 X 5/8		Appelez-nous	-
37	992602		Trim, Door Shelf		Appelez-nous	-
38	988709		Retainer, Door Trim (for Platinum Model Only)		Appelez-nous	-
38	943138		Retainer, Door Trim (2)		Appelez-nous	-
39	537095		Clip, Expansion (4)		Appelez-nous	-
40	839430		Ladder, Door Shelf (2)		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 8.28
42	945091		Door Shelf, Cantilever (2)		Appelez-nous	-
42	1101509		Door Shelf Cantilever (2) (for Platinum Model Only)		Appelez-nous	-
43	945001		Door, Refrigerator (l.h.) (also Order Item 15) (white)		Appelez-nous	-
43	1101498		Door, Refrigerator (l.h.) (also Order Item 15) (platinum)		Appelez-nous	-
43	1101497		Door, Refrigerator (l.h.) (also Order Item 15) (toast)		Appelez-nous	-
43	945005		Door, Refrigerator (l.h.) (also Order Item 15) (almond)		Appelez-nous	-
43	945003		Door, Refrigerator (l.h.) (also Order Item 15) (golden Harvest)		Appelez-nous	-
43	945004		Door, Refrigerator (l.h.) (also Order Item 15) (new Avocado)		Appelez-nous	-
43	945002		Door, Refrigerator (l.h.) (also Order Item 15) (coffee)		Appelez-nous	-
44	1101512		Interior Door Panel (l.h.) (for Platinum Model Only)		Appelez-nous	-
44	945102		Interior Door Panel (l.h.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
