SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram

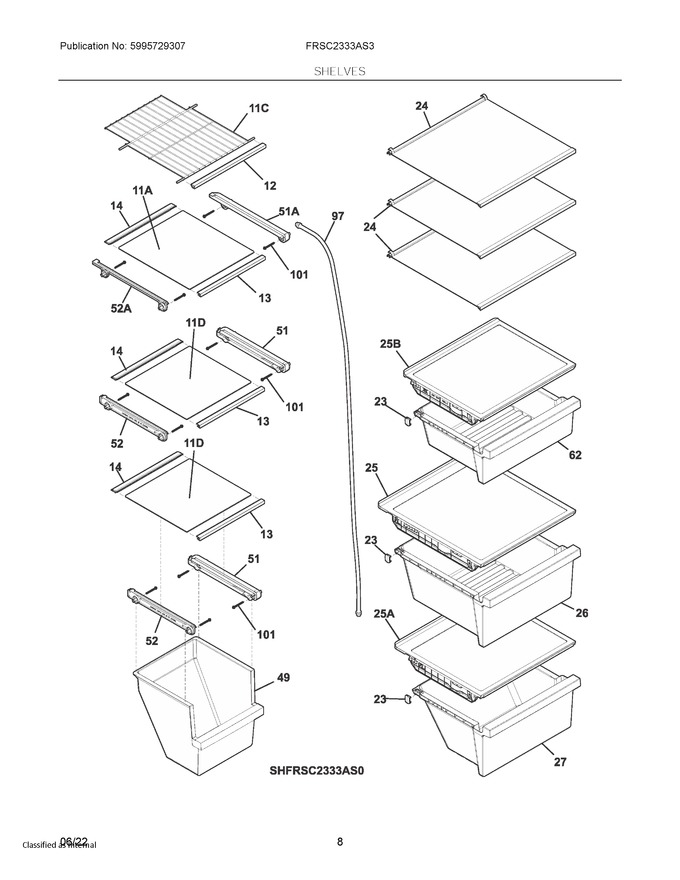

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527182		Trim, Wire Shelf, White				$ 14.32
13	5304527184		Trim, Glass Shelf, Freezer, Front		Appelez-nous	-
14	5304527130		Trim, Freezer Shelf, Rear				$ 113.76
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
23	5304525911		Clip, Slide, Crisper			Immediately	$ 11.80
24	5304527173		Shelf Assembly, Glass, White		Appelez-nous	-
25	140116198148		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304527175)		Appelez-nous	-
26	5304527214		Crisper Pan, Upper, W/slide Clips		Appelez-nous	-
27	5304527215		Crisper Pan, Lower, W/slide Clips		Appelez-nous	-
49	5304527155		Basket, Freezer, Sliding		Appelez-nous	-
51	5304526976		Hanger, Basket, Rh				$ 18.54
52	5304526977		Hanger, Basket, Lh				$ 18.54
62	5304527216		Deli Pan, W/slide Clips		Appelez-nous	-
97	242220119		Tube, Water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 33.86
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
11A	240443358		Shelf-freezer, Glass, Upper				$ 107.86
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	240443399		Shelf, Freezer, Glass, Lower				$ 112.92
25A	5304527176		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket		Appelez-nous	-
25B	5304527177		Deli Cover, Assembly, Glass, W/trim-gasket		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 70.88
52A	241514801		Hanger-shelf Glass, Lh				$ 381.94
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 78.40
NIA	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.90
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81

    View Diagram in Separate Window       Print Part List
