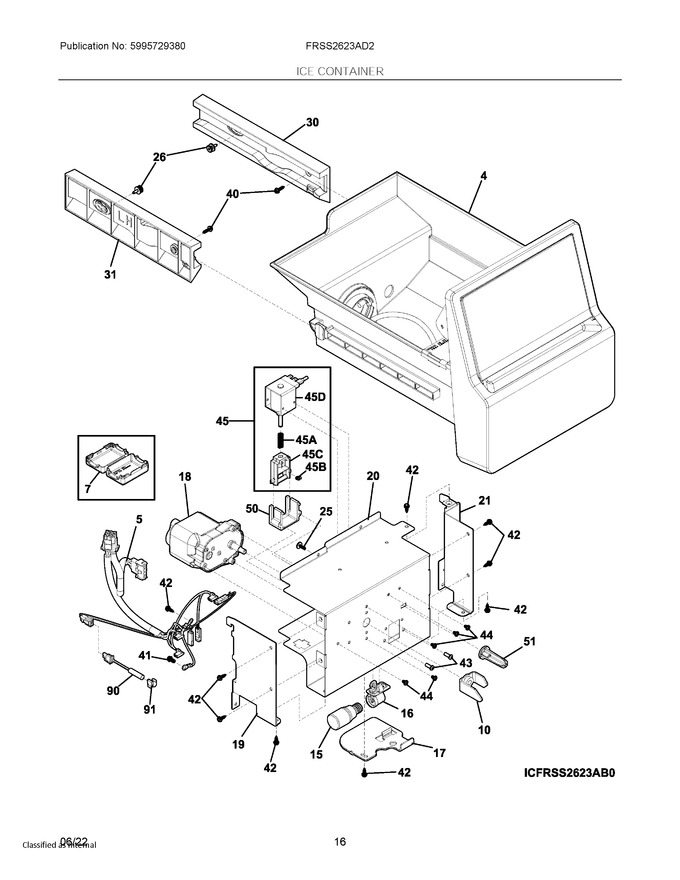

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	241685201		Cam-drive				$ 46.46
4	5304525931		Ice Container Assembly, W/moving Parts		Appelez-nous	-
5	5304525991		Harness, Wiring, Ice Maker, & Auger Assy				$ 70.50
6	241685101		Drum-ice Disp				$ 57.49
7	5304526063		Cover, Connector, Ice Maker				$ 188.50
10	241726501		Bar-drive				$ 65.36
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 44.66
16	5304522315		Socket, Led Light			Immediately	$ 11.80
17	5304521688		Shield, Light, Freezer		Appelez-nous	-
18	5304526014		Motor, Auger			Immediately	$ 191.21
19	5304525944		Cover Guard, Motor, Lh		Appelez-nous	-
20	241734903		Cover, Motor		Appelez-nous	-
21	5304525975		Cover Guard, Motor, Rh				$ 25.70
23	241684001		Plate-front				$ 166.16
25	242015001		Screw, 8-18 X 1/2			Immediately	$ 18.11
26	241690602		Screw, Cr Pan Hd, 10-16 X 0.500   (Replaces: 215503205)				$ 11.81
30	5304525945		Rail, Ice Container, Rh		Appelez-nous	-
31	5304525946		Rail, Ice Container, Lh				$ 111.23
33	241684802		Spacer				$ 10.11
34	241689802		Spacer				$ 9.27
39	241690501		Screw				$ 18.11
40	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
41	241885001		Housing-crusher   (Replaces: 241685601)				$ 84.26
42	5308000039		Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head		Appelez-nous	-
43	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.88
44	218359202		Screw, 8-32 X 1/4   (Replaces: 241842101)				$ 11.81
45	241675705		Solenoid, Assembly			Immediately	$ 153.58
46	241716002		Control Rod				$ 48.83
47	241731801		Spring-control Rod				$ 15.75
48	241684602		Bracket-control Rod				$ 118.91
50	241675601		Guide-solenoid				$ 88.99
51	5304511761		Stop, Rotation				$ 4.48
52	241684901		Spacer-fixed Blades				$ 31.50
53	241690402		Pin-spiral, Fixed Blades				$ 21.26
54	241685001		Nut-auger				$ 22.05
55	241690306		Washer				$ 55.13
56	241690201		E-ring				$ 21.26
90	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.73
91	241519401		Clip, Sensor				$ 9.45
26A	5304420654		Screw-thermo/sprt, 4-24 X 0.375, (4)		Appelez-nous	-
35A	241684503		Blade Stationary   (Replaces: 241684303)				$ 19.38
35B	241684203		Blade Stationary				$ 20.22
37A	241684107		Blade Moving				$ 24.43
37B	241684108		Blade Moving				$ 24.43
37C	241684109		Blade Moving				$ 24.43
45A	241675902		Spring-solenoid				$ 7.09
45B	241676001		E-ring-solenoid				$ 77.96
45C	241676101		Actuator-solenoid				$ 71.66
45D	241675804		Solenoid, 115v		Appelez-nous	-
NI	218515401		Clip, Grille/tube, & Hinge				$ 19.69
NI	240555002		Screw, Hex Washer Head, 8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 14.96
NIA	241684503		Blade Drive				$ 19.38
