01 - Cover Sheet


02 - Control Panel


03 - Microwave Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram

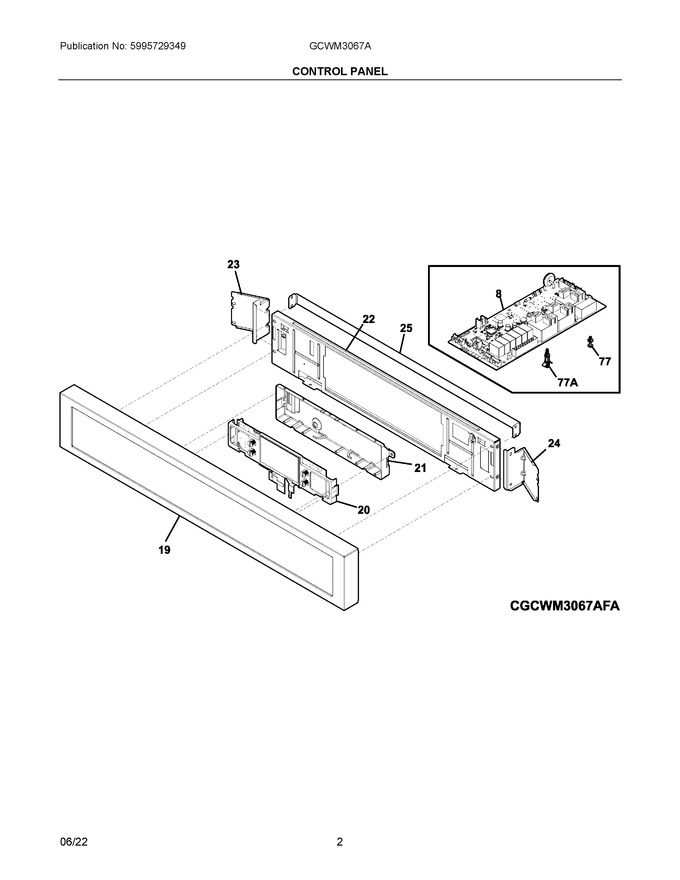

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477064		Circuit Board, Ovc   (Replaces: 5304530411)			Immediately	$ 150.00
19	5304530381		Control Panel, Assembly, Steel/glass, Black Stainless				$ 162.00
20	5304536547		Controller, Electronic, Ui720m   (Replaces: 5304530396)			Immediately	$ 205.33
21	5304523582		Housing, Controller			Immediately	$ 37.92
22	A16358901		Bracket, Support, Control Panel				$ 89.54
23	5304530392		Bracket, Control Panel, Lh				$ 19.44
24	5304530393		Bracket, Control Panel, Rh				$ 19.44
25	5304535440		Bracket, Emc Shield   (Replaces: 5304530446)				$ 10.31
77	5304530451		Spacer, Standoff, Ovc		Appelez-nous	-
77A	316114100		Spacer				$ 67.73
NI	5304526500		Harness, Wiring, Ds Mdl, Lower Oven, Hall Effect				$ 46.40
NI	5304530449		Harness, Wiring, Tachometer, Lower Oven, Low Voltage, Hall Effect   (Replaces: 5304526502)			Immediately	$ 51.51
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)			Immediately	$ 171.61
NI	5304530449		Harness, Wiring, Lower Oven, Low Voltage   (Replaces: 5304526503)			Immediately	$ 51.51
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 123.25
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 16.12
