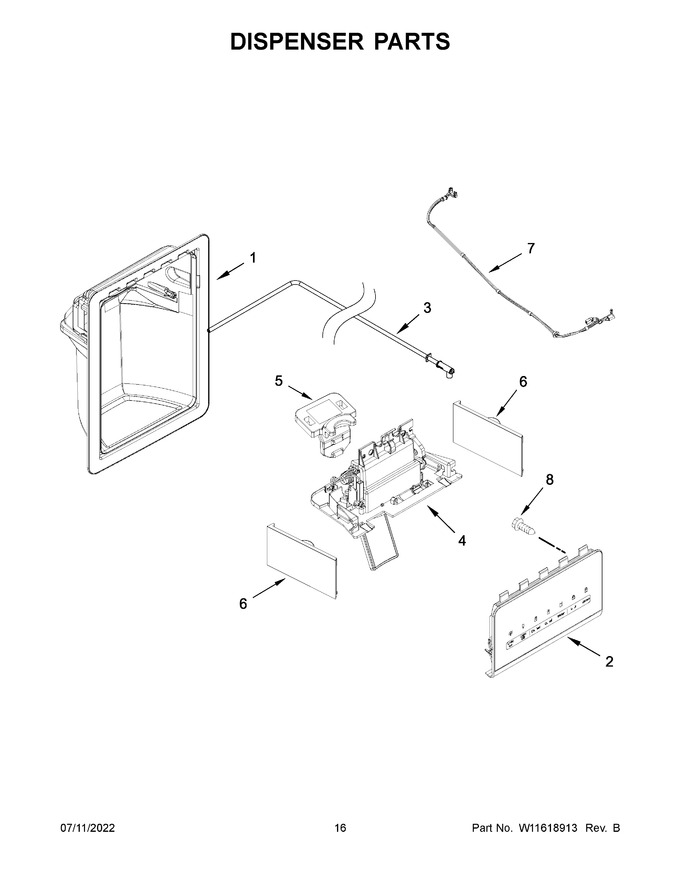

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
2	W11216949		Assembly, User Interface (includes Dispenser Light) (black)   (Replaces: W10922069)				$ 392.44
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 149.45
4	W11423789		Assembly, Separator (white)   (Replaces: W11355300)				$ 149.86
5	W11397167		Retainer, Separator Hose   (Replaces: W11039857)			Immediately	$ 21.01
6	W11311797		Cover, Dispenser Front (white (left Hand))   (Replaces: W11183318)		Appelez-nous	-
7	W10898319		Harness, Wire				$ 135.76
8	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
4A	W11678840		Assembly, Separator (black)   (Replaces: W11355299)				$ 172.02
6A	W11311798		Cover, Dispenser Front (white (right Hand))   (Replaces: W11183314)		Appelez-nous	-
6B	W11311799		Cover, Dispenser Front (black (left Hand))   (Replaces: W11183317)				$ 92.45
6C	W11311800		Cover, Dispenser Front (black (right Hand))   (Replaces: W11183313)			Immediately	$ 95.68

    View Diagram in Separate Window       Print Part List
