SELECT A DIAGRAM

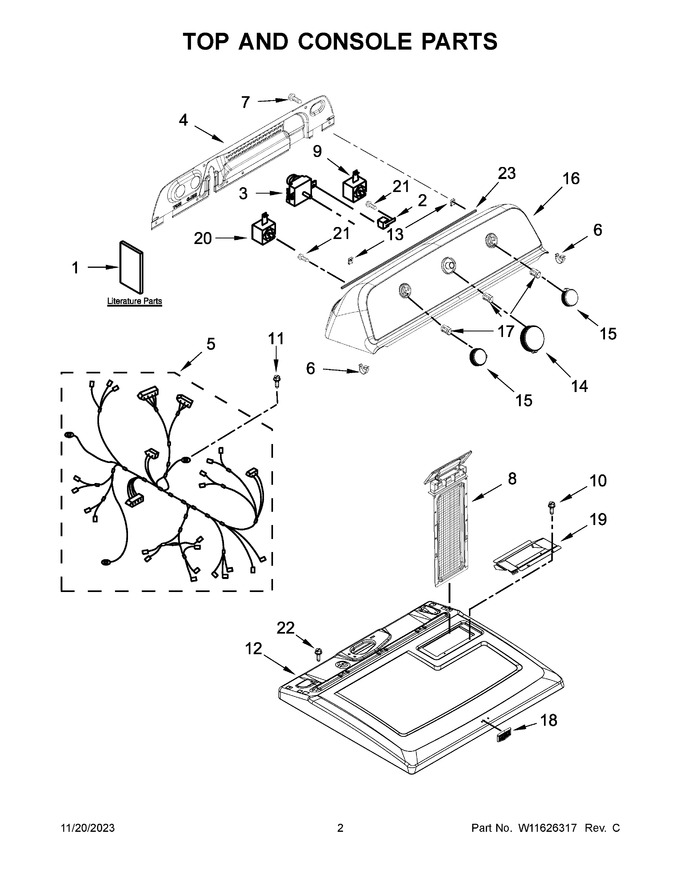

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555817		Owners Manual		Appelez-nous	-
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
3	W11685947		Timer, Electric   (Replaces: W11566735)			Immediately	$ 85.46
4	W10775189		Panel, Rear				$ 390.13
5	W11485016		Harness, Main				$ 250.40
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 8.47
8	W11778254		Lint Screen (white)   (Replaces: W11538108)			Immediately	$ 54.63
9	W11625516		Rotary Switch, Pts   (Replaces: W11566917)			Immediately	$ 76.93
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
14	W11708423		Knob   (Replaces: W11677925)			Immediately	$ 31.97
15	W11625514		Knob, Small   (Replaces: W11398762)			Immediately	$ 36.87
16	W11625515		Assembly, Console (white)   (Replaces: W11576331)				$ 355.02
17	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
18	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
19	W10662472		Collar, Lint Chute				$ 77.87
20	W11625517		Rotary Switch, Tpa   (Replaces: W11566916)				$ 77.83
21	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
22	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
23	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
1A	W11492875		Tech Sheet		Appelez-nous	-
1B	W11466175		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
