SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts

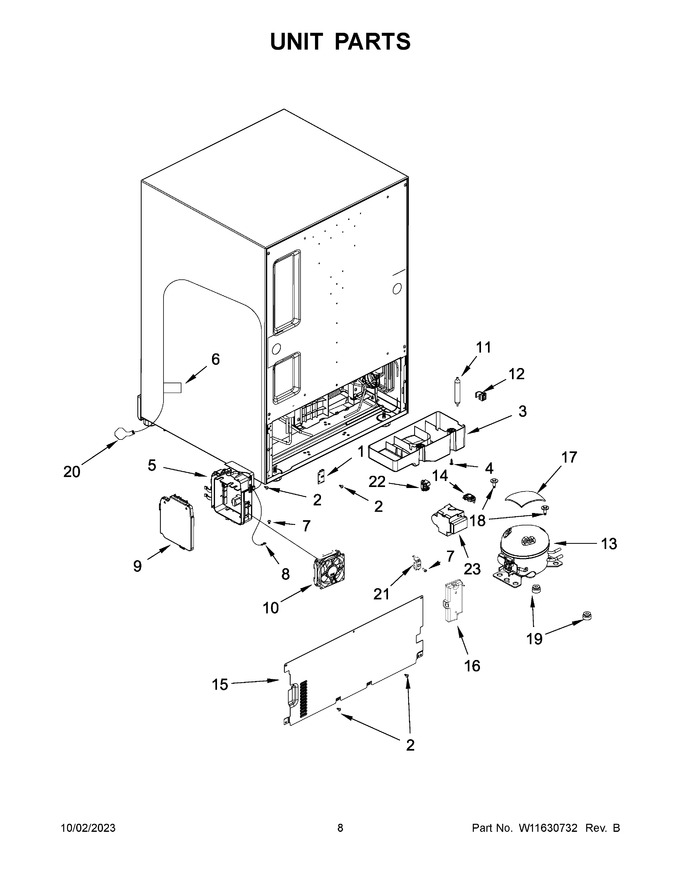

05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11827050		Main Pcb   (Replaces: W11568810)			Immediately	$ 576.92
6	W11618463		Tag, Power Cord   (Replaces: W11577175)			Immediately	$ 132.47
7	4344826		Screw				$ 16.70
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 81.85
10	W11360536		Assembly, Fan Motor				$ 215.88
11	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11754545		Compressor   (Replaces: W11531824)				$ 775.36
14	W11592422		Ib Box Assembly   (Replaces: W11580236)			Immediately	$ 386.56
14	W11579512		Protector, Motor   (Replaces: W11568812)				$ 45.85
15	W11568821		Panel, Cover		Appelez-nous	-
16	W11360590		Cover, Side		Appelez-nous	-
17	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 38.27
18	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
19	W11360596		Mount, Compressor		Appelez-nous	-
20	W11618463		Cord, Power   (Replaces: W11498145)			Immediately	$ 132.47
21	W11360592		Stopper		Appelez-nous	-
22	W11596023		Ptc Thermistor   (Replaces: W11422771)				$ 74.61
23	W11579581		Cover   (Replaces: W11568820)		Appelez-nous	-
24	W11579512		Protector, Motor   (Replaces: W11568812)				$ 45.85
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	ARIF916CC318E008C40755DF76F91C7B724		Refrigerant Charge 52 Grams (r600a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
