02 - Door


03 - Cabinet


04 - Liner , Lit/optional


05 - Interior


06 - Breaker And Control


07 - Unit

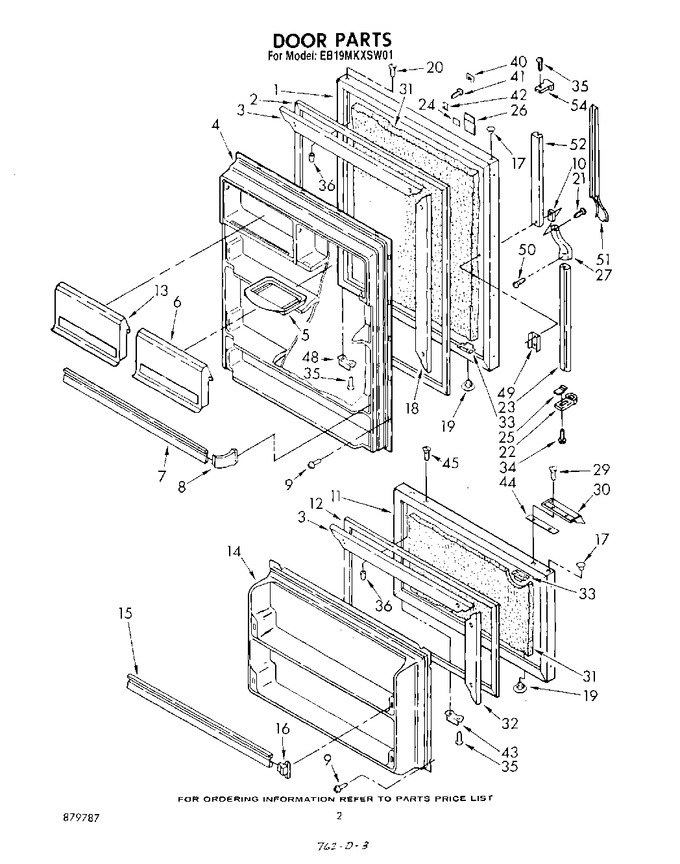

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110304		Door, Refrigerator (also Order Item 31) (white)		Appelez-nous	-
1	1110306		Door, Refrigerator (also Order Item 31) (almond)		Appelez-nous	-
1	1110305		Door, Refrigerator (also Order Item 31) (golden Harvest)		Appelez-nous	-
1	1110308		Door, Refrigerator (also Order Item 31) (platinum)		Appelez-nous	-
1	1110307		Door, Refrigerator (also Order Item 31) (toast)		Appelez-nous	-
2	986009		Gasket, Refrigerator Door		Appelez-nous	-
3	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
4	482559		Panel, Interior Door		Appelez-nous	-
5	520747		Tray, Butter		Appelez-nous	-
6	1108977		Door, Butter		Appelez-nous	-
7	1108975		Trim, Door Shelf (3)		Appelez-nous	-
8	WP849996		Retainer, Door Shelf Trim (6)   (Replaces: 849996)				$ 7.57
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
10	935075		Shim, Center End Cap		Appelez-nous	-
11	1110314		Door, Freezer (also Order Item 31) (almond)		Appelez-nous	-
11	1110312		Door, Freezer (also Order Item 31) (white)		Appelez-nous	-
11	1110313		Door, Freezer (also Order Item 31) (golden Harvest)		Appelez-nous	-
11	1110316		Door, Freezer (also Order Item 31) (platinum)		Appelez-nous	-
11	1110315		Door, Freezer (also Order Item 31) (toast)		Appelez-nous	-
12	986016		Gasket, Freezer Door		Appelez-nous	-
13	1108978		Door, Utility		Appelez-nous	-
14	1101494		Panel, Interior Door		Appelez-nous	-
15	1109059		Trim, Door Shelf (2)		Appelez-nous	-
16	839904		Retainer, Door Shelf Trim (4)				$ 5.65
17	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 7.80
17	1100188		Hole Plug (toast)		Appelez-nous	-
17	1100189		Hole Plug (platinum)		Appelez-nous	-
17	WP2212648		Plug, Hole (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.80
17	989196		Plug, Hole (almond)		Appelez-nous	-
18	986008		Retainer Gasket, Side (2)		Appelez-nous	-
19	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
19	534927		Plug, Hole (2) (white)		Appelez-nous	-
19	1100196		Hole Plug (2) (toast)		Appelez-nous	-
19	989879		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
19	989197		Plug, Hole (2) (almond)		Appelez-nous	-
20	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.94
21	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
22	944157		Cap, Handle		Appelez-nous	-
23	1109057		Handle (center) (for Platinum Model Only)		Appelez-nous	-
23	1109048		Handle, Center		Appelez-nous	-
24	991259		Tape Strip		Appelez-nous	-
25	943188		Spacer, Handle				$ 7.80
26	945116		Nameplate		Appelez-nous	-
27	1109189		Cap, Handle (bottom)		Appelez-nous	-
29	488934		Screw (repair)		Appelez-nous	-
29	488933		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
30	657077		Door Handle		Appelez-nous	-
31	876029		Kit, Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
32	986015		Retainer, Gasket (side) (2)		Appelez-nous	-
33	943185		Plate, Tap (2)		Appelez-nous	-
34	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.49
34	488923		Screw (repair)		Appelez-nous	-
35	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 7.75
35	488930		Screw (repair)		Appelez-nous	-
36	509929		Cap, Hinge Sleeve		Appelez-nous	-
40	1111705		Medallion		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
42	1107329		Clip, Medallion		Appelez-nous	-
43	944036		Bracket, Door Stop		Appelez-nous	-
44	989711		Shim, Handle		Appelez-nous	-
45	488935		Screw, 10-32 X 1/2		Appelez-nous	-
48	944035		Bracket, Door Stop		Appelez-nous	-
49	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
50	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
51	1111940		Insert, Handle		Appelez-nous	-
51	1111943		Insert, Handle (black) (for Platinum Model Only)		Appelez-nous	-
52	935873		Retainer, Insert		Appelez-nous	-
54	1105804		Endcap, Insert Retainer		Appelez-nous	-
