01 - Cover Sheet

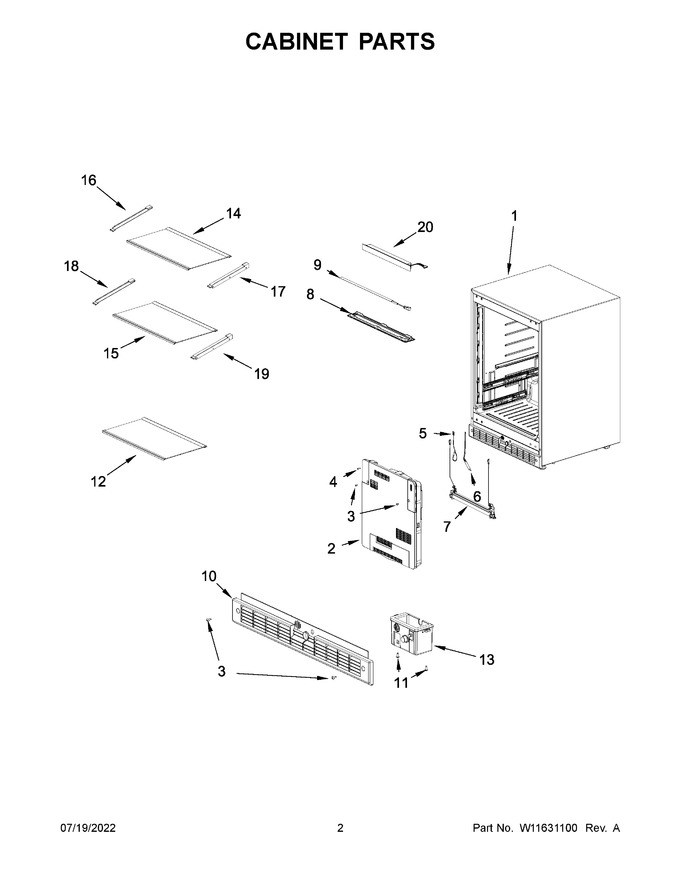

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
2	W11633775		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)   (Replaces: W11407975)				$ 377.74
3	W11675284		Screw   (Replaces: W11371095)				$ 15.94
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 121.67
6	W11359415		Fuse, Temperature				$ 109.28
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11263841		Led Assembly   (Replaces: W11312453)				$ 158.17
11	W11360218		Kick, Plate				$ 121.28
11	W11371097		Screw		Appelez-nous	-
12	W11548216		Assembly, Glass Tray   (Replaces: W11546125)		Appelez-nous	-
13	W11359433		Assembly, Switch Box				$ 152.89
14	W11538058		Tray, Glass				$ 102.59
15	W11632316		Assembly, Glass Tray   (Replaces: W11631015)		Appelez-nous	-
16	W10797332		Support, Shelf (left Hand)				$ 30.15
17	W10797333		Support, Shelf (right Hand)				$ 30.15
18	W10797336		Support, Shelf (left Hand)		Appelez-nous	-
19	W10797337		Support, Shelf (right Hand)		Appelez-nous	-
20	W11602203		Control, Base				$ 394.19
