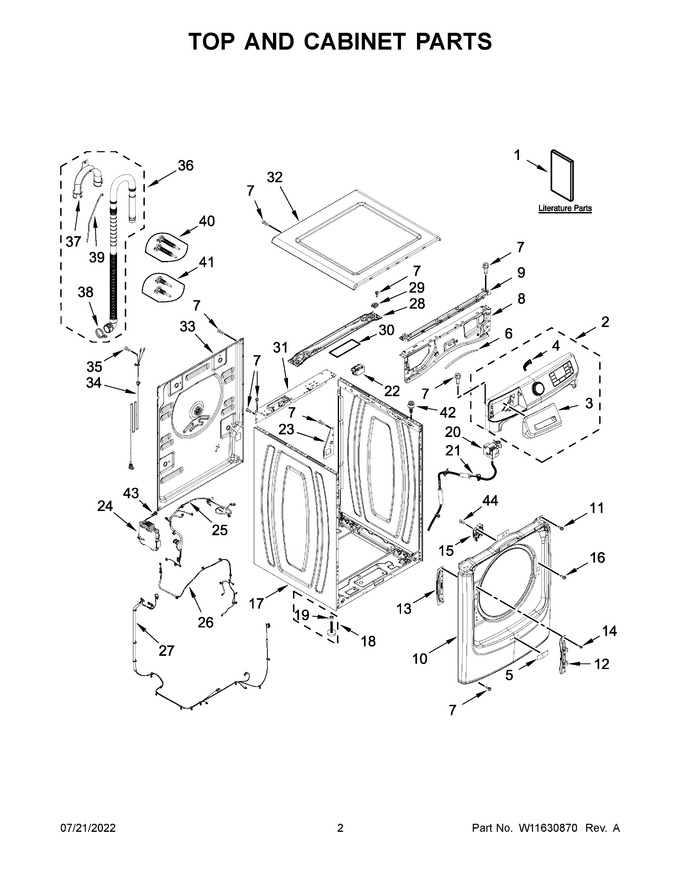

02 - Top And Cabinet Parts


03 - Door Parts


04 - Dispenser Parts


05 - Water System Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11355369		Owner's Manual		Appelez-nous	-
2	W11633357		Assembly, Console (black)   (Replaces: W11580415)			Immediately	$ 575.11
3	W11580427		Handle, Drawer (black)				$ 86.85
4	W11316625		Jumper, Harness Hmi (board To Board)   (Replaces: W10920818)				$ 168.09
5	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
6	W11316770		Edge Guard   (Replaces: W10407376)		Appelez-nous	-
7	W11568617		Screw   (Replaces: W10567155)				$ 14.02
8	W11314678		Bracket, Console   (Replaces: W10915381)				$ 148.59
9	W11458348		Channel, Water   (Replaces: W10796898)		Appelez-nous	-
10	W11633291		Panel, Front (black)   (Replaces: W11538081)				$ 252.63
11	WP273556		Screw   (Replaces: 357640)			Immediately	$ 7.82
12	WPW10208415		Hinge, Base   (Replaces: W10208415)			Immediately	$ 117.42
13	W10299097		Bracket, Hinge				$ 20.12
14	W11661566		Screw   (Replaces: W10288126)				$ 14.03
15	W11565030		Lock, Door   (Replaces: W10804741)			Immediately	$ 59.42
16	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
17	W11353000		Cabinet (black Shadow)				$ 505.94
18	W10888529		Leveling Leg Assembly   (Replaces: W10073890)			Immediately	$ 13.29
19	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.19
20	W11316246		Pressure Switch   (Replaces: W11125159)			Immediately	$ 103.04
21	W11456953		Hose, Pressure Switch   (Replaces: W11319791)			Immediately	$ 33.24
22	W11316771		Rfi Filter   (Replaces: W11219530)			Immediately	$ 104.66
23	W11316769		Bracket, Drain Hose   (Replaces: W11091443)			Immediately	$ 21.04
24	W11550649		Appliance Control Unit (acu)			Immediately	$ 386.99
25	W11316252		Harness, Upper   (Replaces: W10919934)			Immediately	$ 123.07
26	W11316253		Harness, Ntc   (Replaces: W11038117)				$ 17.92
27	W11557918		Harness, Main Lower   (Replaces: W11509204)				$ 159.35
28	W10467484		Brace, Top				$ 42.84
29	W11846996		Retainer, Spring   (Replaces: W10245452)		Appelez-nous	-
30	W11314674		Foam Pad   (Replaces: W10331064)				$ 18.95
31	W11353016		Bracket, Rear				$ 23.73
32	W11328714		Top (black Shadow)   (Replaces: W11201341)				$ 331.32
33	W11491750		Panel, Rear   (Replaces: W11420275)			Immediately	$ 344.38
34	W11316254		Cord, Power   (Replaces: W10919946)			Immediately	$ 128.10
35	W10850756		Screw   (Replaces: W10773242)				$ 7.76
36	W11551765		Hose, Drain (external)   (Replaces: W11392677)			Immediately	$ 20.82
37	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 79.53
38	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
39	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 7.90
40	W11316631		Bolt, Transport (long)   (Replaces: W11041287)				$ 40.52
41	W11316629		Bolt, Transport (short)   (Replaces: W11041011)				$ 41.65
42	W10208380		Screw And Bushing Assembly				$ 69.03
43	W11318750		Screw   (Replaces: W10864034)		Appelez-nous	-
44	W10306501		Screw		Appelez-nous	-
1A	W11355237		Quick Start Guide		Appelez-nous	-
1B	W11561250		Energy Guide		Appelez-nous	-
1C	W11366244		Cycle Guide		Appelez-nous	-
