01 - Cover Sheet
02 - Top And Cabinet Parts

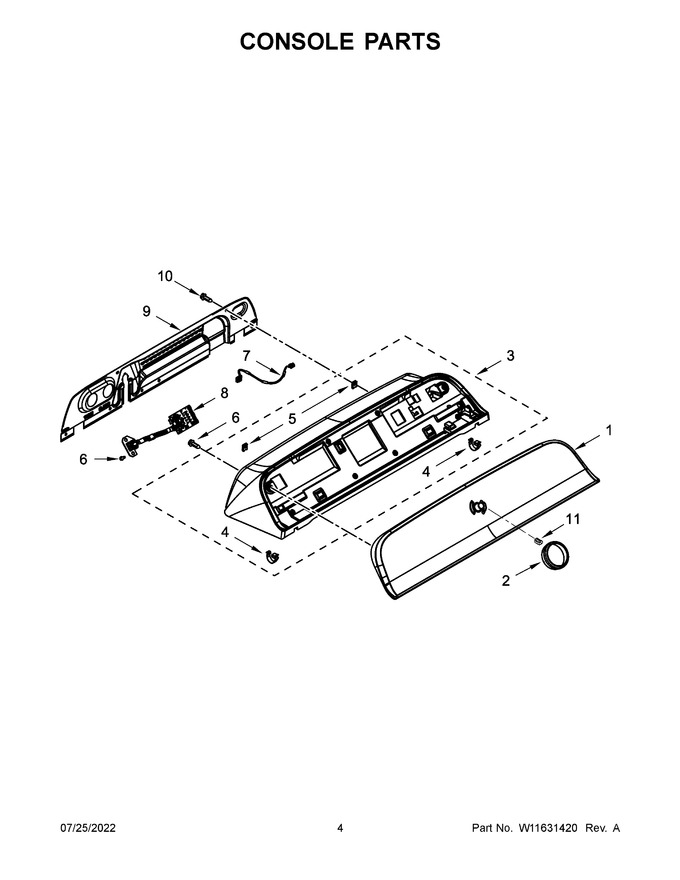

03 - Console Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11561182 | Assembly, Fascia (Replaces: W11406492) |
|
Immediately | $ 263.59 | ||||
| 2 | W11406489 | Assembly, Control Knob (chrome) |
|
$ 49.56 | |||||
| 3 | W11569437 | Assembly, Console (white) (Replaces: W11447379) |
|
Immediately | $ 157.13 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 7 | W11662667 | Harness, Ui (Replaces: W11414312) |
|
$ 14.73 | |||||
| 8 | W11627516 | Encoder Assembly (Replaces: W11557402) |
|
Immediately | $ 321.70 | ||||
| 9 | W11129559 | Panel, Console Rear |
|
$ 292.62 | |||||
| 10 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 |
