SELECT A DIAGRAM

02 - Door


03 - Cabinet

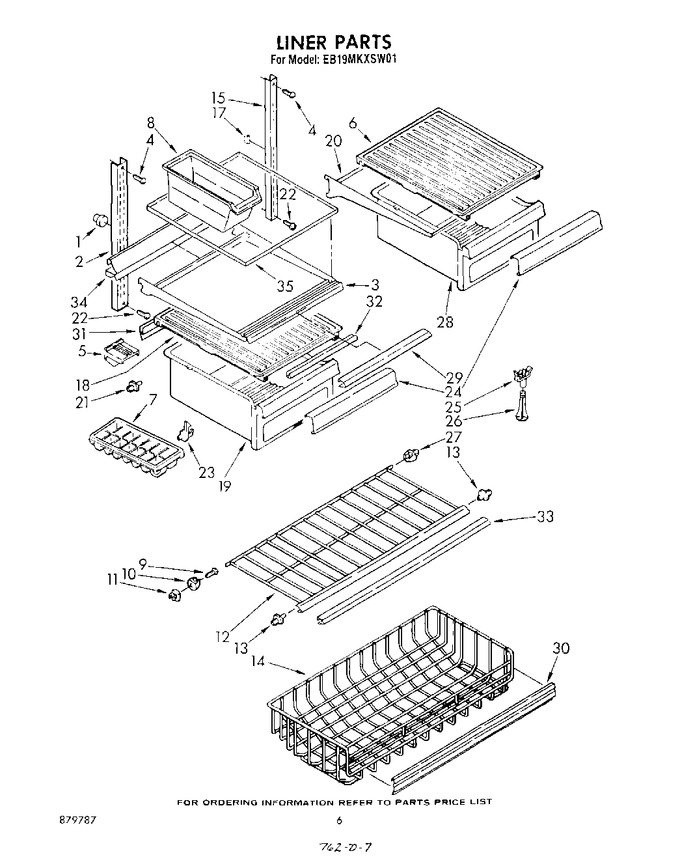

04 - Liner , Lit/optional


05 - Interior


06 - Breaker And Control


07 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520959		Support, Center Ladder (2)		Appelez-nous	-
2	936230		Ladder (center)		Appelez-nous	-
3	1109029		Shelf, Cantilever (3)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
5	836412		Stud, Crisper Support (rear)		Appelez-nous	-
6	1106070		Pan, Cover		Appelez-nous	-
7	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
8	WP982704		Container, Utility   (Replaces: 1106048)				$ 31.00
9	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.79
10	1100113		Stud, Saddle (l.s.)		Appelez-nous	-
11	538449		Grommet, Screw		Appelez-nous	-
12	986809		Shelf, Freezer		Appelez-nous	-
13	529758		Stud, Shelf (2)		Appelez-nous	-
14	985382		Basket, Freezer		Appelez-nous	-
15	934267		Ladder, Shelf (side) (2)		Appelez-nous	-
17	520965		Support, Side Ladders (4)				$ 29.86
18	1106069		Pan Slide & Cover		Appelez-nous	-
19	1111934		Pan Crisper, Plastic (2)		Appelez-nous	-
20	936285		Pan Shelf, Cantilever		Appelez-nous	-
21	536475		Stud, Shelf (2)				$ 7.28
22	488980		Screw (repair)		Appelez-nous	-
22	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
23	836423		Stud, Shelf (2)		Appelez-nous	-
24	986316		Overlay, Pan		Appelez-nous	-
25	848562		Support, Crisper Cover				$ 24.30
26	836410		Post, Cover				$ 5.84
27	1100114		Stud, Saddle (r.s.)		Appelez-nous	-
28	1111936		Pan Meat, Plastic		Appelez-nous	-
29	935223		Trim, Shelf Front		Appelez-nous	-
30	991320		Trim, Freezer Basket		Appelez-nous	-
31	942027		Crisper Gasket, Rear (2)		Appelez-nous	-
32	942028		Crisper Gasket, Front (2)		Appelez-nous	-
33	985070		Trim, Shelf Front		Appelez-nous	-
34	991328		Reflector, Shelf		Appelez-nous	-
35	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
35	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
35	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
35	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
35	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
35	833938		Kit, Terminal Connector				$ 8.07
35	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
35	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
35	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
35	1109030		Glass Shelf		Appelez-nous	-
35	350942		Primer White (13 Oz. Spray Can)				$ 89.66
35	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
35	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
35	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
35	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
35	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
35	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
35	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
35	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
35	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
35	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
35	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
35	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
35	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
35	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
35	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
35	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
35	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
35	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
35	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
35	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
35	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	LIT879787		Parts List		Appelez-nous	-
	LIT946603		Service & Wiring Sheet		Appelez-nous	-
	LIT1111942		Energy Label		Appelez-nous	-
	LIT1114071		Care & Use Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
