01 - Cover Sheet
02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

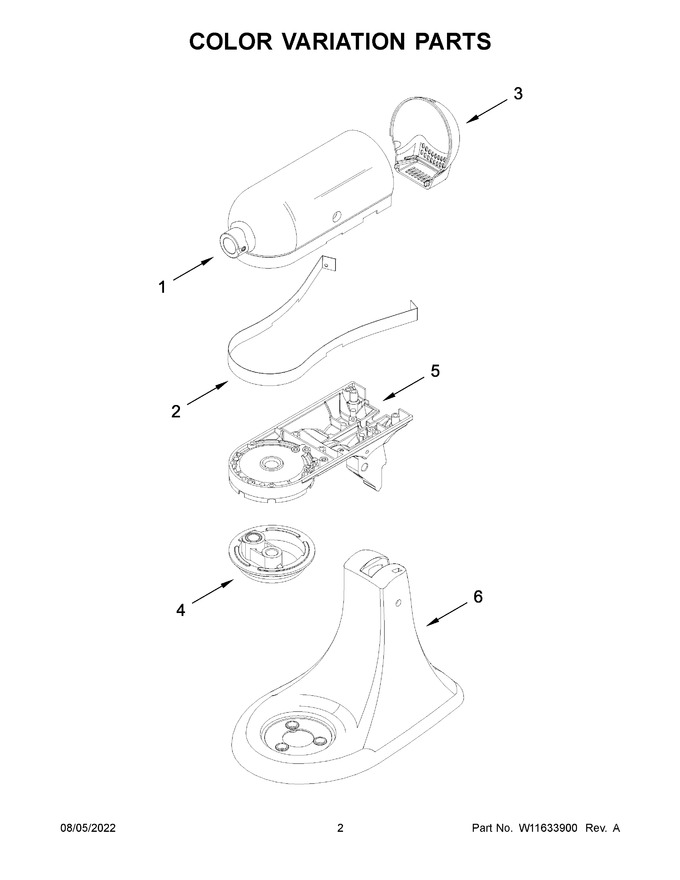

| 1 | W11113875 | Motor Housing (ink Blue) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | W11113833 | End Cover (ink Blue) |
|
- | |||||
| 4 | W11113890 | Planetary (ink Blue) |
|
- | |||||
| 5 | W11113862 | Lower Gearcase (ink Blue) |
|
- | |||||
| 6 | W11269286 | Pedestal W/feet & Headlock (ink Blue) |
|
- |
