SELECT A DIAGRAM

01 - Cover Sheet

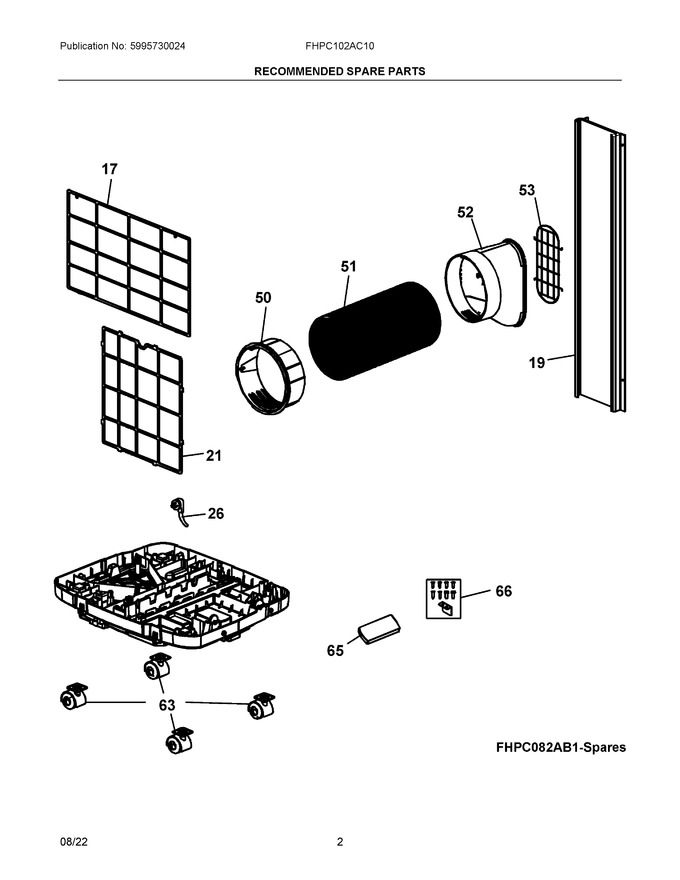

02 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304524262		Air Filter, Evaporator		Appelez-nous	-
19	5304524261		Slider Kit, Window		Appelez-nous	-
21	5304524266		Air Filter, Condenser, Lower		Appelez-nous	-
26	5304518127		Power Cord, Electric, Service		Appelez-nous	-
50	5304518155		Connector, Exhaust Hose				$ 36.92
51	5304518156		Hose, Exhaust				$ 36.92
52	5304524281		Nozzle, Exhaust Hose				$ 40.58
53	5304524282		Grille, Rodent-resist				$ 53.64
63	5304524285		Castor, (4)				$ 26.76
65	5304518171		Remote Control				$ 139.53
66	5304518172		Hardware Kit, W/safety Lock		Appelez-nous	-
NI	5304518173		Sealing Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
