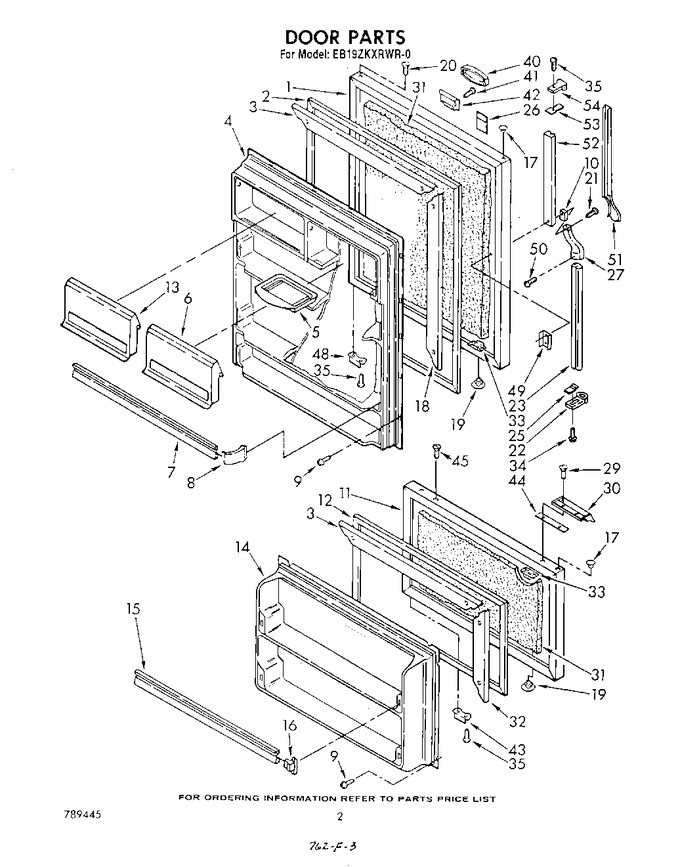

02 - Door
03 - Cabinet
04 - Liner , Not Illustrated
05 - Interior
06 - Breaker And Control
07 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1110001 | Door, Refrigerator (also Order Item 31) (white) |
|
- | |||||
| 1 | 1110003 | Door, Refrigerator (also Order Item 31) (almond) |
|
- | |||||
| 1 | 1110002 | Door, Refrigerator (also Order Item 31) (golden Harvest) |
|
- | |||||
| 1 | 1110005 | Door, Refrigerator (also Order Item 31) (platinum) |
|
- | |||||
| 1 | 1110004 | Door, Refrigerator (also Order Item 31) (toast) |
|
- | |||||
| 2 | 986009 | Gasket, Refrigerator Door |
|
- | |||||
| 3 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 4 | 482559 | Panel, Interior Door |
|
- | |||||
| 5 | 520747 | Tray, Butter |
|
- | |||||
| 6 | 1109198 | Door, Butter |
|
- | |||||
| 7 | 1108975 | Trim, Door Shelf (3) |
|
- | |||||
| 8 | WP849996 | Retainer, Door Shelf Trim (6) (Replaces: 849996) |
|
$ 7.95 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | 935075 | Shim, Center End Cap |
|
- | |||||
| 11 | 1101487 | Door, Freezer (also Order Item 31) (toast) |
|
- | |||||
| 11 | 944389 | Door, Freezer (also Order Item 31) (white) |
|
- | |||||
| 11 | 944391 | Door, Freezer (also Order Item 31) (golden Harvest) |
|
- | |||||
| 11 | 944393 | Door, Freezer (also Order Item 31) (almond) |
|
- | |||||
| 11 | 1101488 | Door, Freezer (also Order Item 31) (platinum) |
|
- | |||||
| 12 | 986016 | Gasket, Freezer Door |
|
- | |||||
| 13 | 1109199 | Door, Utility |
|
- | |||||
| 14 | 1101494 | Panel, Interior Door |
|
- | |||||
| 15 | 1109059 | Trim, Door Shelf (2) |
|
- | |||||
| 16 | 839904 | Retainer, Door Shelf Trim (4) |
|
$ 5.65 | |||||
| 17 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 17 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 17 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 17 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 18 | 986008 | Retainer Gasket, Side (2) |
|
- | |||||
| 19 | 534927 | Plug, Hole (2) |
|
- | |||||
| 20 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 21 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 22 | 944157 | Cap, Handle |
|
- | |||||
| 23 | 1109057 | Handle (center) (for Platinum Model Only) |
|
- | |||||
| 23 | 1109048 | Handle, Center |
|
- | |||||
| 25 | 943188 | Spacer, Handle |
|
$ 7.80 | |||||
| 26 | 945116 | Nameplate |
|
- | |||||
| 26 | 1110077 | Nameplate (for Platinum Model Only) |
|
- | |||||
| 27 | 1109189 | Cap, Handle (bottom) |
|
- | |||||
| 29 | 488934 | Screw (repair) |
|
- | |||||
| 29 | 488933 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 30 | 657077 | Door Handle |
|
- | |||||
| 31 | 876029 | Kit, Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 32 | 986015 | Retainer, Gasket (side) (2) |
|
- | |||||
| 33 | 943185 | Plate, Tap (2) |
|
- | |||||
| 34 | 488923 | Screw (repair) |
|
- | |||||
| 34 | WP488920 | Screw, 8 X 5/8 (2) (Replaces: 488920) |
|
$ 7.98 | |||||
| 35 | WP488921 | Screw, 8 X 1/2 (2) (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 35 | 488930 | Screw (repair) |
|
- | |||||
| 40 | 1100194 | Medallion (toast) |
|
- | |||||
| 40 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 40 | 989904 | Medallion (almond) |
|
- | |||||
| 40 | 848382 | Medallion (white) |
|
- | |||||
| 40 | 1100195 | Medallion (platinum) |
|
- | |||||
| 41 | 488844 | Screw, 8-32 X 1/2 |
|
- | |||||
| 42 | 843213 | Clip, Medallion |
|
- | |||||
| 43 | 944036 | Bracket, Door Stop |
|
- | |||||
| 44 | 989711 | Shim, Handle |
|
- | |||||
| 45 | 488935 | Screw, 10-32 X 1/2 |
|
- | |||||
| 48 | 944035 | Bracket, Door Stop |
|
- | |||||
| 49 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 50 | 489022 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 51 | 1110008 | Insert, Handle (golden Harvest) |
|
- | |||||
| 51 | 1110011 | Insert, Handle (platinum) |
|
- | |||||
| 51 | 1110010 | Insert, Handle (toast) |
|
- | |||||
| 51 | 1110007 | Insert, Handle (white) |
|
- | |||||
| 51 | 1110009 | Insert, Handle (almond) |
|
- | |||||
| 52 | 935873 | Retainer, Insert |
|
- | |||||
| 53 | 1105805 | Shim, Endcap |
|
- | |||||
| 54 | 1105804 | Endcap, Insert Retainer |
|
- |
