SELECT A DIAGRAM

01 - Cover Sheet


02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

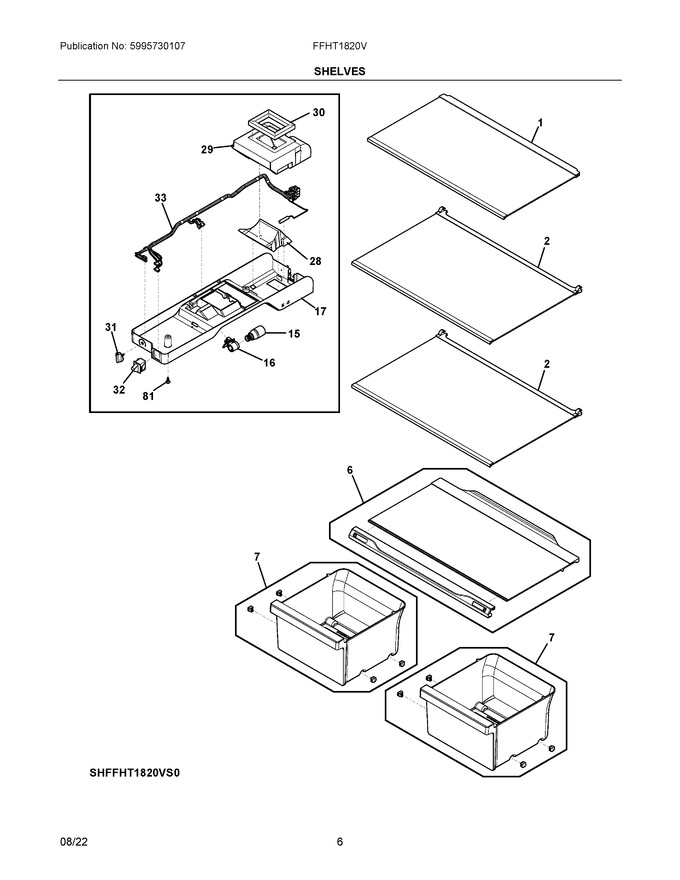

1	5304530507		Shelf Assembly, Freezer, Glass, W/trim		Appelez-nous	-
2	5304530537		Shelf Assembly, Refrigerator, Glass, W/trim		Appelez-nous	-
6	5304530583		Cover Assembly, Crisper, Glass, Complete		Appelez-nous	-
7	5304530597		Pan Assembly, Crisper, W/sliders		Appelez-nous	-
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 44.66
16	5304530650		Socket, Light, Led			Immediately	$ 11.12
17	5304524322		Housing, Control Box				$ 120.50
28	5304522318		Diffuser, Control Box, Top				$ 18.54
29	5304522317		Diffuser, Control Box, Bottom				$ 18.60
30	5304520493		Seal, Air Duct, Top			Immediately	$ 20.22
31	5304522319		Knob, Control			Immediately	$ 9.27
32	140118119027		Switch, Door/light, White   (Replaces: 5304520495)			Immediately	$ 4.83
33	5304537127		Harness, Wiring, Control Box, W/temp Sensor   (Replaces: 5304522320)		Appelez-nous	-
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.37
