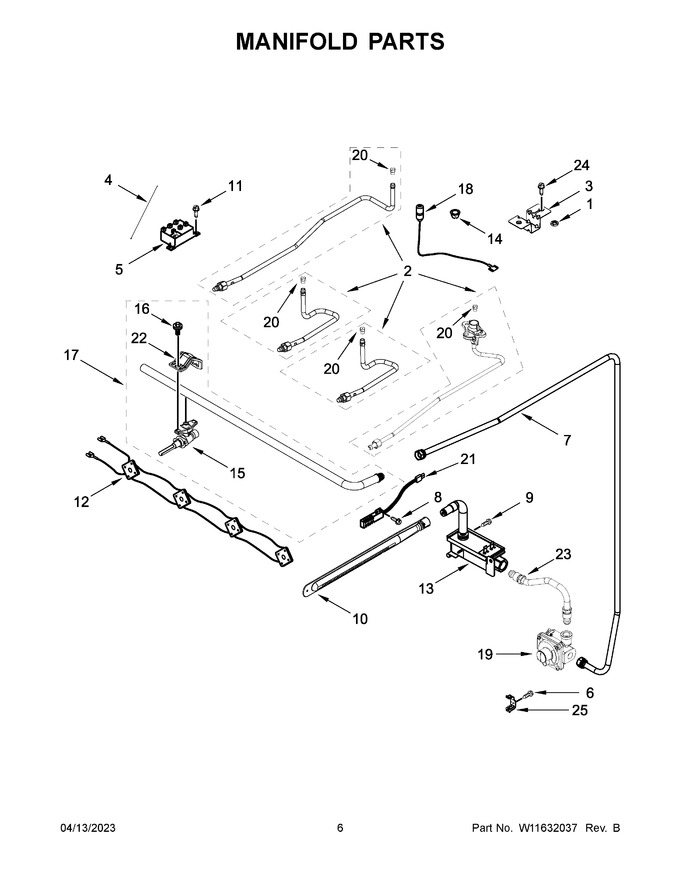

04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10610297 | Nut |
|
- | |||||
| 2 | W11550283 | Assembly, Tubing (left Front) (Replaces: W10620002) |
|
- | |||||
| 3 | W11715913 | Bracket, Surface Burner (Replaces: W10122103) |
|
- | |||||
| 4 | W10622750 | Cable, Spark (black) |
|
- | |||||
| 5 | W11590249 | Java Tech Spark Module 4 Pos (Replaces: W11281166) |
|
$ 24.51 | |||||
| 6 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 7.30 | |||||
| 7 | W11628651 | Tube 3/8" Manifold To Reg (Replaces: W10619922) |
|
- | |||||
| 8 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 9 | 98013634 | Screw |
|
- | |||||
| 10 | W11220387 | Oven Burner Asm-us Electronic (Replaces: W10650358) |
|
$ 198.58 | |||||
| 11 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 12 | W11620523 | Harness, Switch (Replaces: W11562246) |
|
- | |||||
| 13 | WP98014893 | Valve, Oven (Replaces: 98014893) |
|
$ 165.35 | |||||
| 14 | WPW10278150 | Clip, Ignitor (Replaces: W10278150) |
|
$ 45.12 | |||||
| 15 | W11620515 | Valve, Saddle (left Front) (Replaces: W11509757) |
|
- | |||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W11509626 | Assembly, Manifold |
|
- | |||||
| 18 | WPW10209656 | Ignitor, Top (black) (Replaces: W10209656) |
|
Immediately | $ 85.25 | ||||
| 19 | W11346659 | Regulator (Replaces: W10633327) |
|
$ 279.18 | |||||
| 20 | WP98017349 | Orifice, Natural (11.5k) (left Front) (Replaces: 98017349) |
|
$ 94.06 | |||||
| 21 | W11590294 | Igniter, Hot Surface (Replaces: W11208965) |
|
- | |||||
| 22 | W10574737 | Bracket, Valve |
|
- | |||||
| 23 | W11684515 | Tubing (regulator To Oven Valve) (Replaces: W10512963) |
|
- | |||||
| 24 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 15A | W11620105 | Valve, Saddle (left Rear And Right Front) (Replaces: W11509554) |
|
- | |||||
| 15B | W11509769 | Valve, Saddle (right Rear) |
|
- | |||||
| 18A | WPW10209657 | Ignitor, Top (natural) (Replaces: W10209657) |
|
$ 56.66 | |||||
| 20A | WP98017348 | Orifice, Natural (9.5k) (left Rear And Right Front) (Replaces: 98017348) |
|
$ 91.99 | |||||
| 20B | WPW10170506 | Orifice, Natural (5k) (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 2A | W11213836 | Assembly, Tubing (left Rear) (Replaces: W10512770) |
|
- | |||||
| 2B | W10861724 | Assembly, Tubing (right Front) (Replaces: W10512771) |
|
- | |||||
| 2C | W11167099 | Assembly, Tubing (right Rear) (Replaces: W10514424) |
|
$ 31.16 | |||||
| NI | W11620541 | Kit, Lp Conversion (Replaces: W11557685) |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- |
