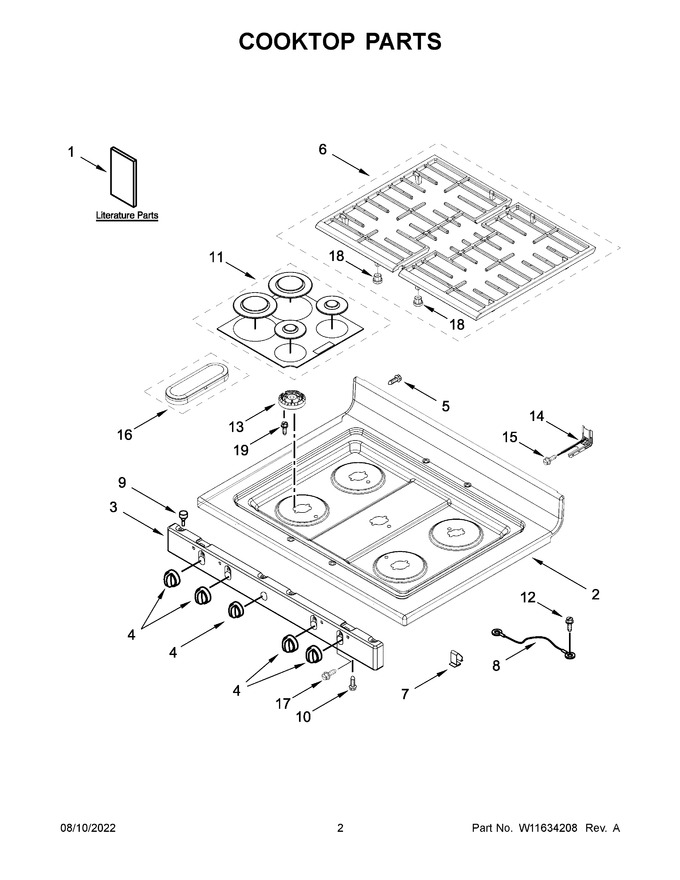

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11508820 | Instructions, Installation |
|
- | |||||
| 2 | W11620479 | Cooktop (black) (Replaces: W11443179) |
|
- | |||||
| 3 | W11708332 | Panel, Manifold (black) (Replaces: W11578531) |
|
- | |||||
| 4 | W11620491 | Knob, Burner (black) (Replaces: W11488096) |
|
- | |||||
| 5 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 7.30 | |||||
| 6 | W11832970 | Set, Grate (black) (Replaces: W11465357) |
|
$ 280.94 | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 12.44 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 6610473) |
|
$ 86.92 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 14.72 | ||||
| 11 | W11605759 | Burner Cap Kit (black (set Of 4) (left Front, Left Rear, Right Front, Right Rear)) (Replaces: W11498499) |
|
Immediately | $ 75.35 | ||||
| 12 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 8.20 | |||||
| 13 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 14 | WPW10613666 | Bracket, Anti-tip (Replaces: W10613666) |
|
$ 17.96 | |||||
| 15 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 16 | W11475513 | Oval Burner Assembly (center) (Replaces: W11357363) |
|
$ 109.81 | |||||
| 17 | 98005658 | Screw (stainless) |
|
- | |||||
| 18 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 19 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 13A | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 13B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 1A | W11508721 | Guide, Use And Care |
|
- | |||||
| 1B | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10200950 | Sheet, Tech |
|
- | |||||
| 2A | W11620707 | Cooktop (white) (Replaces: W11443178) |
|
- | |||||
| 3A | W11578530 | Panel, Manifold (white) |
|
- | |||||
| 4A | W11620708 | Knob, Burner (white) (Replaces: W11488103) |
|
- | |||||
| NI | NP | Trim, Front Stainless (not Serviced) |
|
- | |||||
| NI | 98005896 | Clip, Wire |
|
- | |||||
| NI | 98015022 | Bushing, Snap |
|
- | |||||
| NI | W11774399 | Harness, Main (Replaces: W11465032) |
|
- | |||||
| NI | W11620511 | Insulation, Manifold (Replaces: W11492747) |
|
- | |||||
| NI | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| NI | 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 14.06 |
