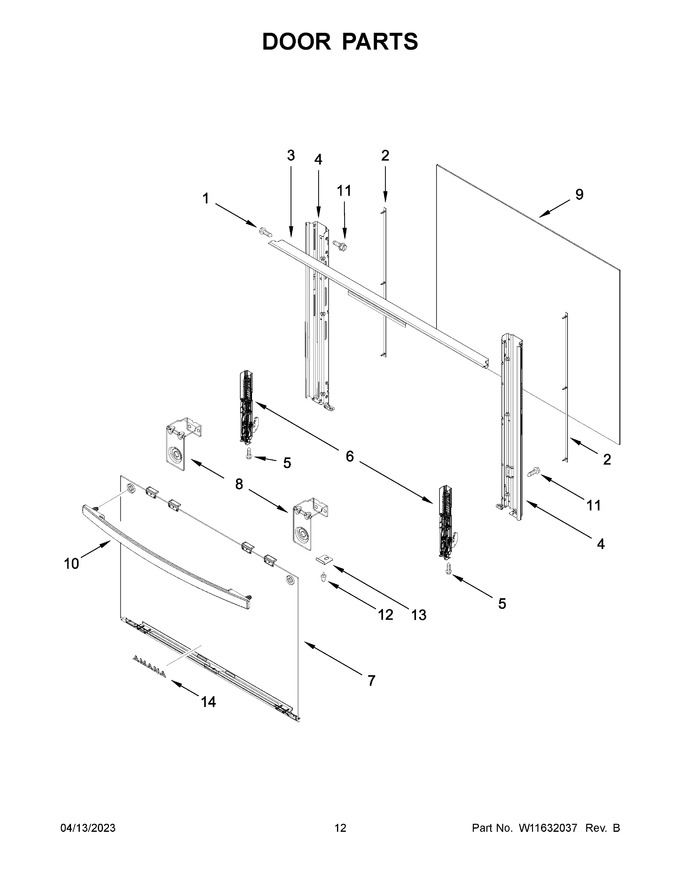

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
2	W11104748		Seal, Inner Door   (Replaces: W10292266)		Appelez-nous	-
3	W11105139		Upper Trim, Oven Door   (Replaces: W10544145)				$ 152.63
4	W11620487		Trim, Side (left)   (Replaces: W11184558)		Appelez-nous	-
5	W10837674		Screw   (Replaces: W10146346)				$ 8.05
6	W10857234		Hinge, Oven Door   (Replaces: W10535788)		Appelez-nous	-
7	W11620710		Glass, Outer Door (black)   (Replaces: W11541719)		Appelez-nous	-
8	W11712435		Handle, Support Bracket   (Replaces: W11569276)		Appelez-nous	-
9	W11620489		Glass, Inner   (Replaces: W11528109)		Appelez-nous	-
10	W11620538		Handle, Oven Door (black)   (Replaces: W11492899)		Appelez-nous	-
11	W11206744		Screw   (Replaces: 98008699)				$ 14.23
12	W10837731		Screw   (Replaces: W10493726)				$ 8.30
13	W10883315		Bracket, Glass Door Hold (black)   (Replaces: W10811550)		Appelez-nous	-
14	W11788675		Badge (black)   (Replaces: W10846751)				$ 31.10
10A	W11492898		Handle, Oven Door (white)		Appelez-nous	-
13A	W11170320		Bracket, Glass Door Hold (white)   (Replaces: W10823829)				$ 78.27
14A	W10849465		Badge (white)			Immediately	$ 82.81
4A	W11620488		Trim, Side (right)   (Replaces: W11184560)		Appelez-nous	-
7A	W11633123		Glass, Outer Door (white)   (Replaces: W11488036)		Appelez-nous	-
