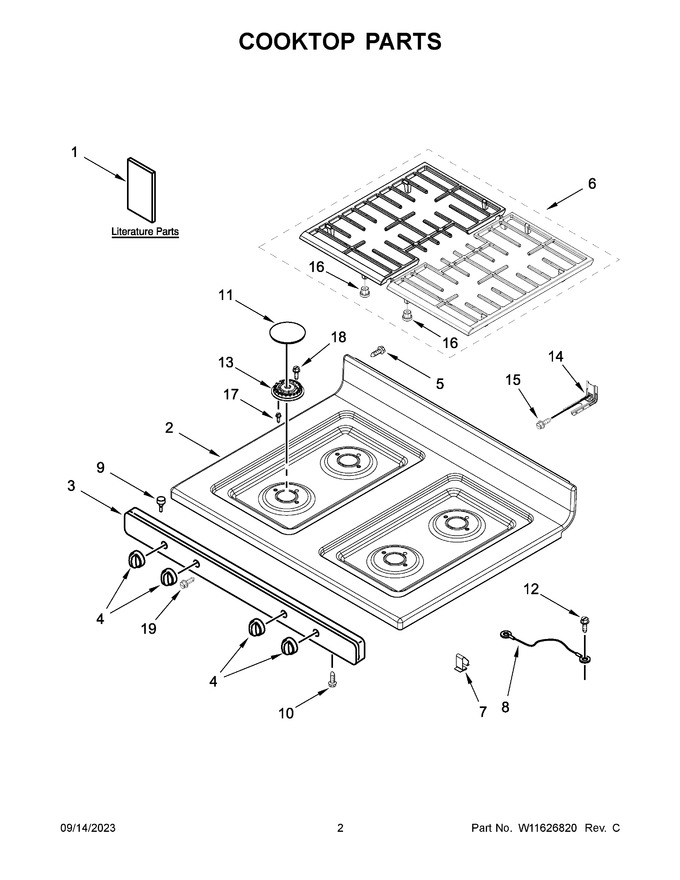

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11508830		Instructions, Installation		Appelez-nous	-
2	W11590296		Wire, Diagram Cooktop (white)   (Replaces: W11443181)		Appelez-nous	-
3	W11578508		Panel, Manifold (white)		Appelez-nous	-
4	W11620708		Knob, Burner (white)   (Replaces: W11488103)		Appelez-nous	-
5	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
6	W11832970		Set, Grate (black)   (Replaces: W11465357)				$ 280.94
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 12.44
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 86.92
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 14.72
11	W11590055		Cap, Burner (black (left Front And Right Front))   (Replaces: W11448875)		Appelez-nous	-
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 8.20
13	W11435630		Spreader, Flame (left Front And Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 17.96
15	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
16	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 13.18
17	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
18	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
19	98005658		Screw (stainless)		Appelez-nous	-
11A	W11590056		Cap, Burner (black (black (left Rear))   (Replaces: W11448464)		Appelez-nous	-
11B	W11590057		Cap, Burner (black (right Rear))   (Replaces: W11453728)		Appelez-nous	-
13A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 84.85
13B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 84.43
19A	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
1A	W11508816		Owners Manual		Appelez-nous	-
2A	W11590287		Wire, Diagram Cooktop (black)   (Replaces: W11443182)		Appelez-nous	-
3A	W11578514		Panel, Manifold (black)		Appelez-nous	-
4A	W11620491		Knob, Burner (black)   (Replaces: W11488096)		Appelez-nous	-
NI	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
NI	W11620511		Insulation, Manifold   (Replaces: W11492747)		Appelez-nous	-
NI	W11774399		Harness, Main   (Replaces: W11465032)		Appelez-nous	-
NI	98005896		Clip, Wire		Appelez-nous	-
NI	98015022		Bushing, Snap		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
