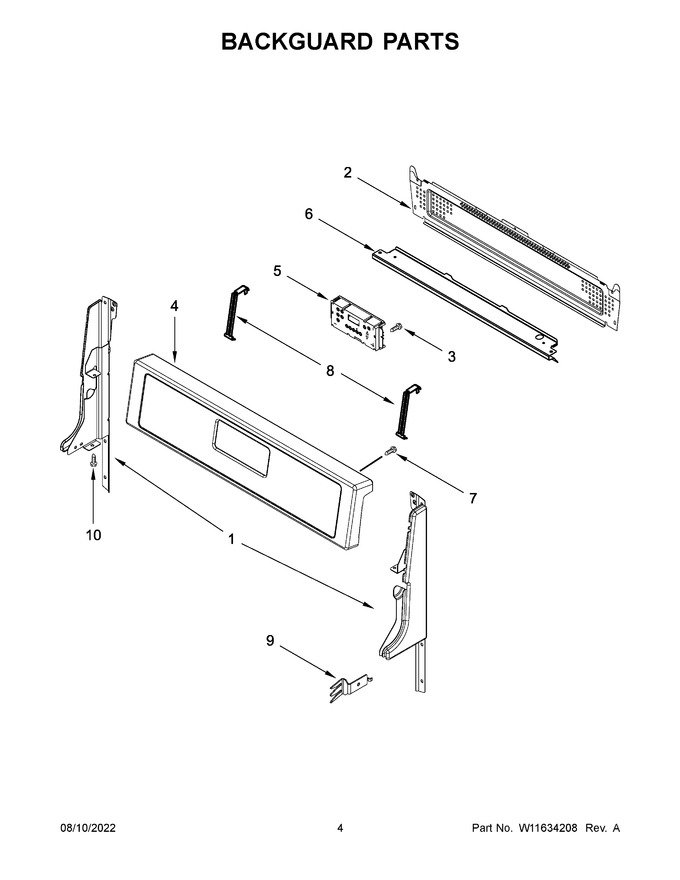

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873109		Endcap (left Hand) (black)		Appelez-nous	-
2	W10588614		Backguard, Rear   (Replaces: W10535808)		Appelez-nous	-
3	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 14.72
4	W11620513		Panel, Control (black)   (Replaces: W11488013)		Appelez-nous	-
5	W11838712		Control, Electronic (black)   (Replaces: W11520704)			Immediately	$ 281.07
6	W10535746		Bracket, Console Mount		Appelez-nous	-
7	WP98008545		Screw (black)   (Replaces: 98008545)				$ 18.60
8	W11620514		Bracket, Control   (Replaces: W11462420)		Appelez-nous	-
9	W10535815		Bracket, Rear		Appelez-nous	-
10	W10837731		Screw   (Replaces: W10493726)				$ 8.30
1A	W10873441		Endcap (left Hand) (white)		Appelez-nous	-
1B	W10873107		Endcap (right Hand) (black)		Appelez-nous	-
1C	W10873438		Endcap (right Hand) (white)		Appelez-nous	-
4A	W11620556		Panel, Control (white)   (Replaces: W11495707)		Appelez-nous	-
5A	W11620552		Control, Electronic (white)   (Replaces: W11520705)		Appelez-nous	-
7A	WP98008544		Screw (white)   (Replaces: 98008544)				$ 13.87
