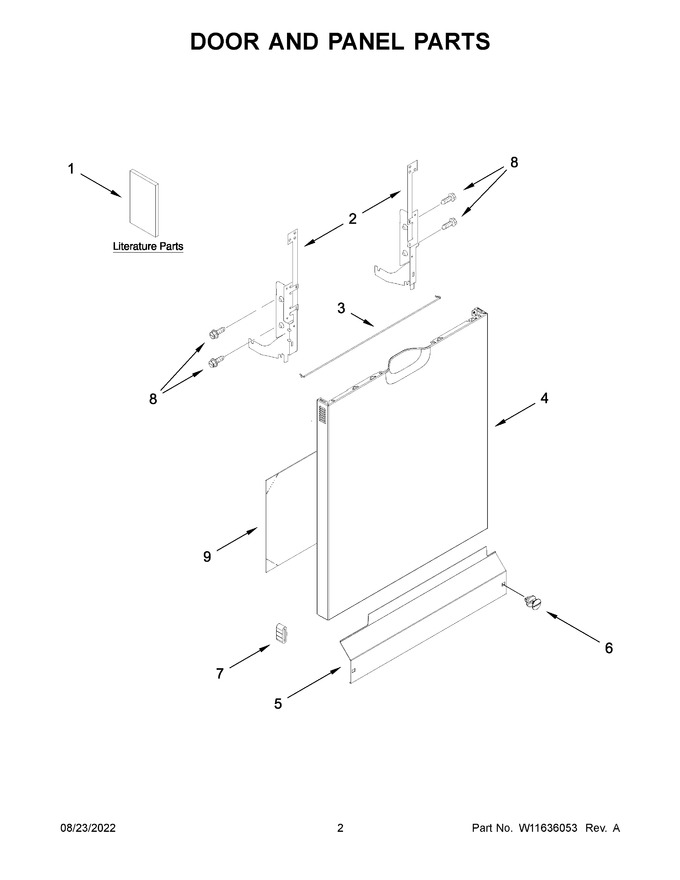

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520040		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W11546151)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11456641		Panel Front (black)   (Replaces: W11403567)		Appelez-nous	-
5	W11763736		Access Panel (includes Hardware) (black)   (Replaces: W10441006)			Immediately	$ 42.25
6	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
9	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
1A	W11532445		Owners Manual		Appelez-nous	-
1B	W11532444		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W11546150)			Immediately	$ 83.93
4A	W11456646		Panel Front (white)   (Replaces: W11403568)				$ 380.45
4B	W11744284		Panel Front (stainless)   (Replaces: W10671878)				$ 505.61
5A	WPW10441007		Access Panel (includes Hardware) (white)   (Replaces: W10441007)				$ 170.94
6A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
