SELECT A DIAGRAM

01 - Cover Sheet

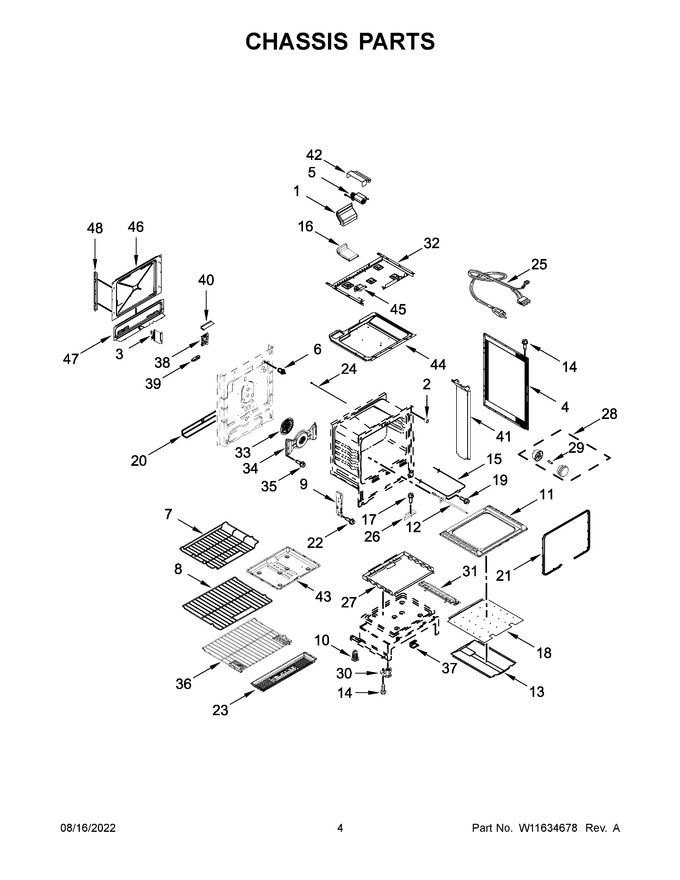

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10614920		Assembly, Flue				$ 174.87
2	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
3	W10273002		Bracket, Oven Support				$ 76.34
4	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
5	W11620737		Cooling Fan   (Replaces: W11467246)			Immediately	$ 139.23
6	W11620712		Switch, Door   (Replaces: W11511828)				$ 46.31
7	W11256463		Rack, Maximum Capacity   (Replaces: W10554006)			Immediately	$ 132.50
8	W11699908		Rack, Heavy Duty   (Replaces: W10554005)				$ 116.49
9	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
10	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 8.24
11	WPW10211368		Bottom, Oven   (Replaces: W10211368)			Immediately	$ 337.76
12	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
13	3601P35645		Baffle, Bake Burner		Appelez-nous	-
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
15	W10552502		Element, Broil Assist			Immediately	$ 117.66
16	W11243157		Assembly, Flue (upper)   (Replaces: W11040249)				$ 370.35
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	W10323077		Diffuser, Flame				$ 281.78
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	W10435470		Brace, Main Back				$ 81.74
21	W11562931		Gasket, Door   (Replaces: W11491752)			Immediately	$ 87.76
22	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
23	W11403917		Kit, Reservoir (steam Rack)   (Replaces: W10686408)				$ 177.63
24	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 66.87
25	W11582239		Cord, Power   (Replaces: W10624590)				$ 17.59
26	W10035900		Support, Oven Bottom				$ 14.36
27	W10541959		Shield, Bake			Immediately	$ 168.98
28	W11594170		Light Assembly   (Replaces: W11544377)			Immediately	$ 35.95
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
30	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
31	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
32	W11320442		Gas Box Burner		Appelez-nous	-
33	W11441001		Convection Assembly   (Replaces: W11353926)			Immediately	$ 136.09
34	W11676564		Baffle, Full Convection   (Replaces: W10346153)				$ 234.02
35	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
36	W11673270		Rack, Steam   (Replaces: W10554007)			Immediately	$ 77.03
37	W10137382		Clip, Panel			Immediately	$ 48.42
38	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 284.59
39	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
40	W10655451		Guard, Splash   (Replaces: W11206138)				$ 76.02
41	W10162254		Duct, Cooling				$ 134.45
42	W10162255		Duct, Cover				$ 29.17
43	W11379356		Pan, Bake				$ 80.02
44	W10289168		Box, Burner Si				$ 204.90
45	W10162257		Duct, Cooktop				$ 28.76
46	W11379354		Cover, Back			Immediately	$ 77.79
47	W10162249		Cover, Wire				$ 109.24
48	W10162241		Channel, Rear				$ 37.56
31A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
NI	W11688363		Insulation, Back   (Replaces: W10162240)				$ 122.19
NI	W11688567		Insulation, Wrap   (Replaces: W10289173)				$ 128.01
NI	4820F01559		Insulation, Strap		Appelez-nous	-
NI	NP		Trim, Front Stainless (not Serviced)		Appelez-nous	-
