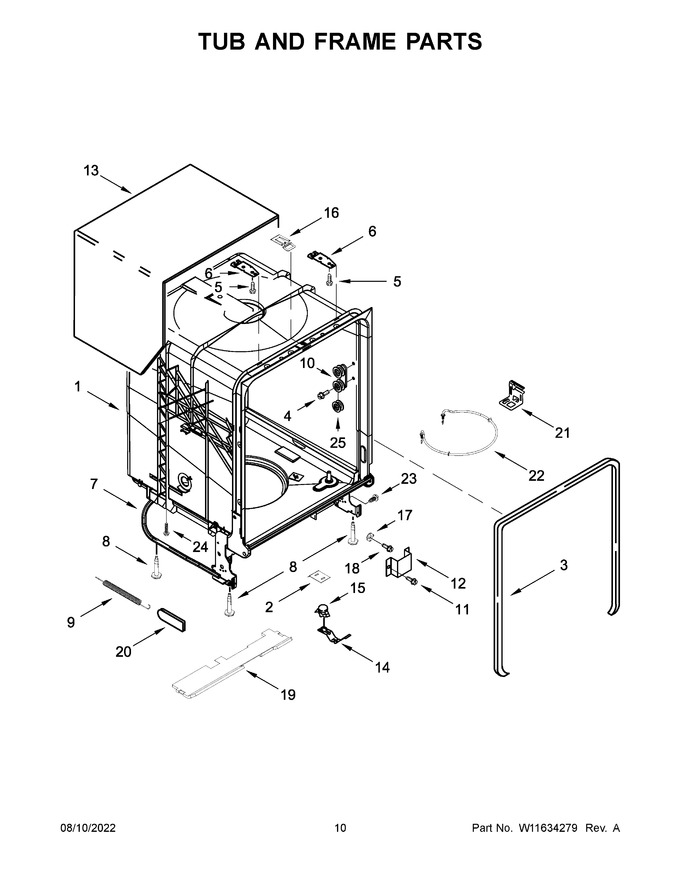

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513977 | Tub Assembly (includes Heater Assembly) (Replaces: W11467711) |
|
$ 725.47 | |||||
| 2 | W11521240 | Shield, Thermostat |
|
- | |||||
| 3 | W11768590 | Seal, Tub (Replaces: W11425053) |
|
Immediately | $ 32.75 | ||||
| 4 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 8.14 | ||||
| 5 | W11551549 | Screw (Replaces: W11296374) |
|
$ 14.72 | |||||
| 6 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 7 | W11680335 | Support, Bottom (Replaces: W10304231) |
|
$ 87.52 | |||||
| 8 | 8193716 | Leveler, Leg (Replaces: W10619352) |
|
Immediately | $ 88.96 | ||||
| 9 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 36.34 | ||||
| 10 | WP8575897 | Wheel Assembly (Replaces: 8575897) |
|
Immediately | $ 11.19 | ||||
| 11 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 12 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 13 | W10896113 | Shield, Tub Sound (Replaces: W10866979) |
|
Immediately | $ 68.68 | ||||
| 14 | W10539489 | Clip, Thermostat |
|
$ 20.14 | |||||
| 15 | WP661566 | Thermostat (Replaces: 3371618) |
|
Immediately | $ 31.28 | ||||
| 16 | WPW10544004 | Strike, Latch (Replaces: W10544004) |
|
Immediately | $ 45.69 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 19 | W11747584 | Sound Insulation, Bottom (Replaces: W10819539) |
|
Immediately | $ 28.63 | ||||
| 20 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 21 | W11027055 | Bracket, Heater Support (Replaces: W10732961) |
|
$ 35.84 | |||||
| 22 | W10518394 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces: W10441445) |
|
Immediately | $ 52.43 | ||||
| 23 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.55 | |||||
| 24 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 25 | 8194001 | Wheel (Replaces: 8270018) |
|
Immediately | $ 43.06 |
