View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console Parts

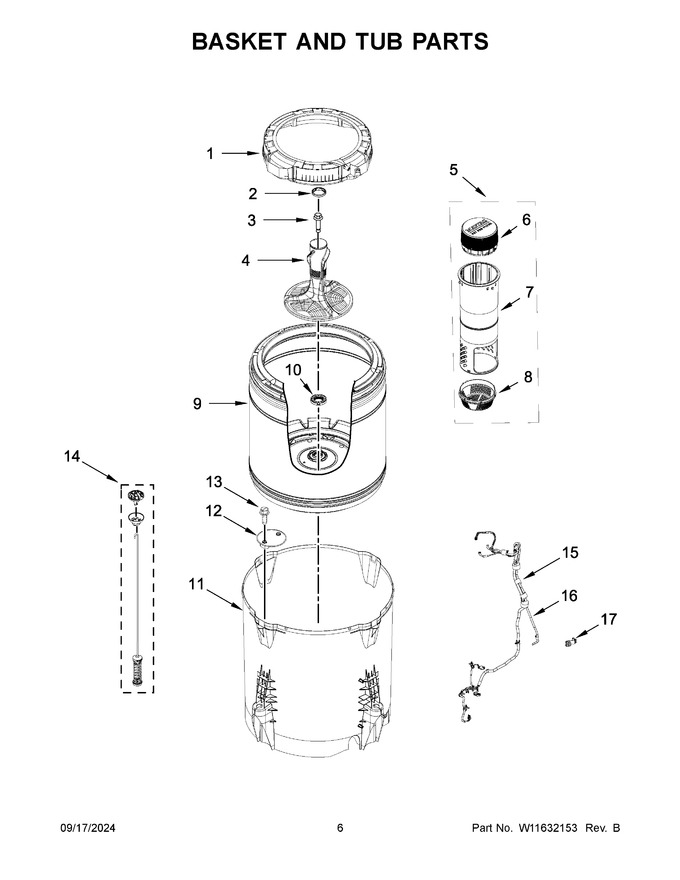

04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662156 | Foot Assembly, Leveling (Replaces: W11094300) |
|
$ 74.38 | |||||
| 2 | W11656227 | Collar, Filter (Replaces: W11553569) |
|
Immediately | $ 115.51 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.13 | ||||
| 4 | W11656227 | Agitator (Replaces: W11553568) |
|
Immediately | $ 115.51 | ||||
| 5 | W11636596 | Filter Assembly (Replaces: W11553587) |
|
$ 75.55 | |||||
| 6 | W11636603 | Cap, Agitator (Replaces: W11591820) |
|
$ 63.50 | |||||
| 7 | W11636599 | Frame, Filter (Replaces: W11553582) |
|
- | |||||
| 8 | W11636601 | Cup, Filter (Replaces: W11553580) |
|
- | |||||
| 9 | W11513243 | Basket Assembly (Replaces: W11459626) |
|
$ 424.22 | |||||
| 10 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 11 | W11219115 | Tub |
|
$ 368.66 | |||||
| 12 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 26.79 | ||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 14 | W11396716 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11171694) |
|
Immediately | $ 201.30 | ||||
| 15 | W11591637 | Harness, Lower (Replaces: W11405458) |
|
Immediately | $ 138.47 | ||||
| 16 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 | ||||
| 17 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.35 |
