01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console Parts

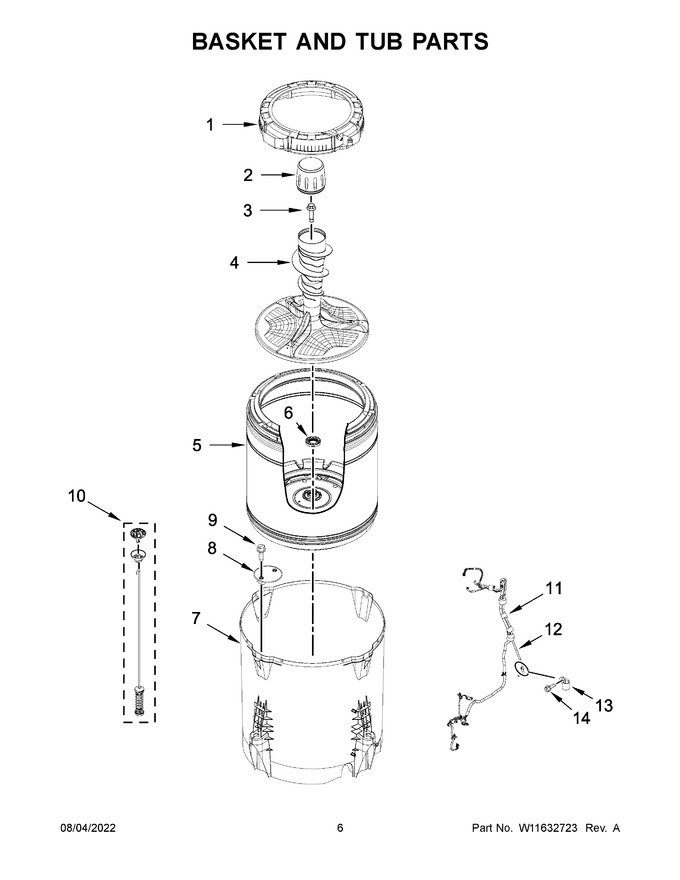

04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11590590 | Tub Ring (Replaces: W11094304) |
|
Immediately | $ 148.08 | ||||
| 2 | W11611671 | Cap, Agitator (Replaces: W11246846) |
|
Immediately | $ 41.21 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W11550891 | Agitator (Replaces: W11093899) |
|
Immediately | $ 113.87 | ||||
| 5 | W11178227 | Basket Assembly |
|
Immediately | $ 461.54 | ||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11219115 | Tub |
|
Immediately | $ 387.09 | ||||
| 8 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 28.13 | ||||
| 9 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 10 | W11400156 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11187091) |
|
Immediately | $ 140.98 | ||||
| 11 | W11568984 | Harness, Lower (Replaces: W11130936) |
|
Immediately | $ 143.18 | ||||
| 12 | WP353244 | Hose Pressure Switch (Replaces: 8572540) |
|
Immediately | $ 59.93 | ||||
| 13 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 14 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 |
