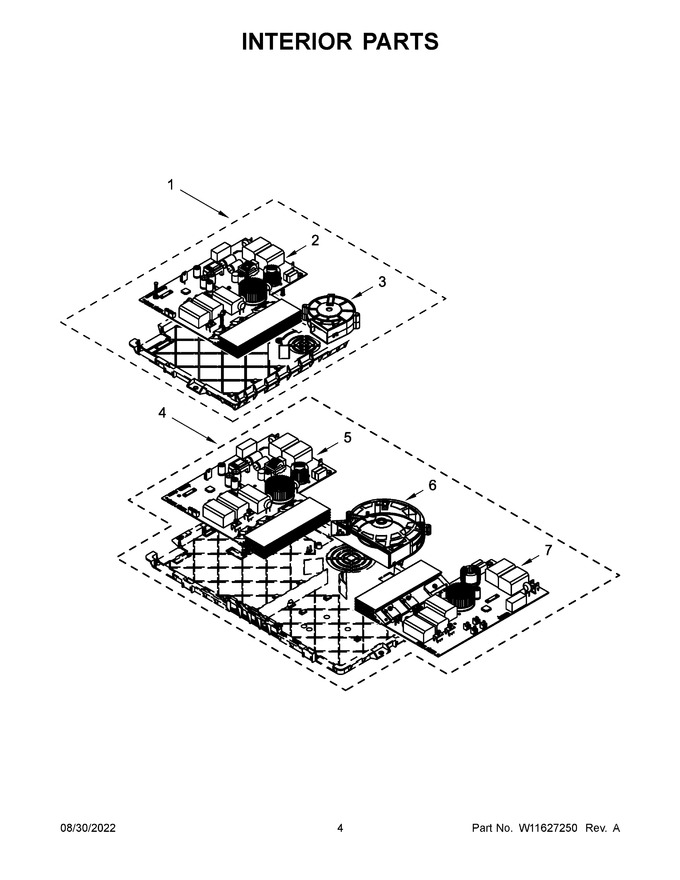

01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W11739786 | Power Board (ascari) (Replaces: W11611382) |
|
Immediately | $ 881.14 | ||||
| 3 | W11251205 | Blower Assembly (domino) |
|
Immediately | $ 182.86 | ||||
| 4 | NP | Following Parts Not Illustrated |
|
- | |||||
| 5 | W11739786 | Power Board (ascari) (Replaces: W11611378) |
|
Immediately | $ 881.14 | ||||
| 6 | W11246545 | Blower Assembly |
|
Immediately | $ 310.94 | ||||
| 7 | W11739786 | Power Board (farina) (Replaces: W11611379) |
|
Immediately | $ 881.14 | ||||
| NI | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 52.94 | |||||
| NI | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 59.90 | ||||
| NI | W11249832 | Communication Harness (ipc2 To Ipc3) |
|
Immediately | $ 36.48 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- |
