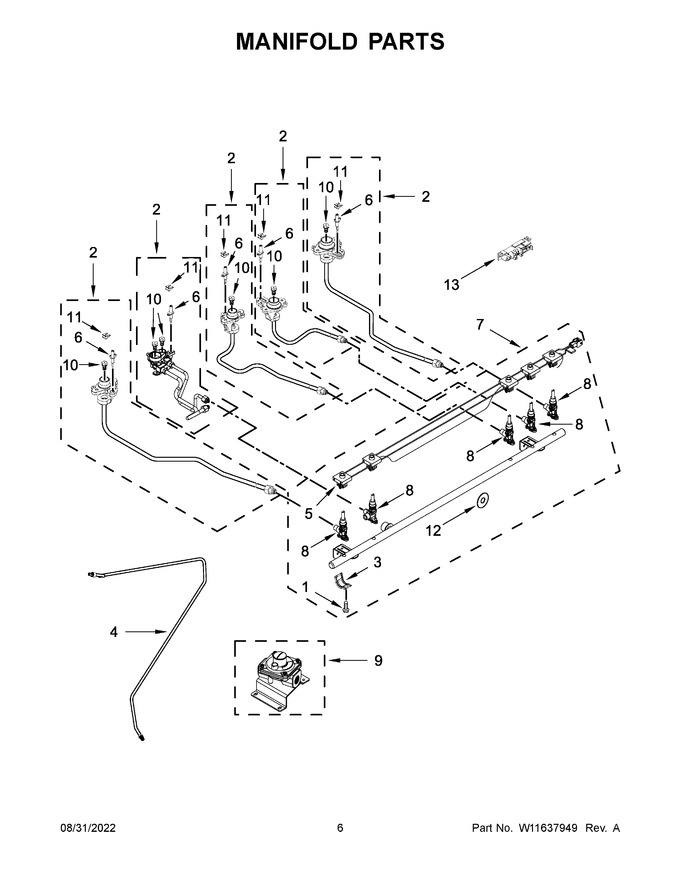

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W11445309 | Orifice Assembly (left Front) (Replaces: W11186513) |
|
Immediately | $ 107.80 | ||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 138.15 | ||||
| 6 | W11675301 | Electrode, Burner (left Front) (Replaces: W10898387) |
|
Immediately | $ 35.31 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 387.83 | |||||
| 8 | W11109973 | Valve, Gas Duel (left Front) (Replaces: W10432224) |
|
Immediately | $ 254.81 | ||||
| 9 | W10661850 | Assembly, Regulator & Bracket |
|
$ 131.25 | |||||
| 10 | W10702888 | Orifice (18k) (left Front) |
|
$ 52.50 | |||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 7.70 | |||||
| 13 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 10A | W11354862 | Orifice (1.45k) (left Front) |
|
- | |||||
| 10B | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 99.15 | |||||
| 10C | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 93.46 | ||||
| 10D | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 93.46 | |||||
| 10E | W10849715 | Orifice (8k) (center) |
|
- | |||||
| 2A | W11186509 | Orifice Assembly (left Rear) |
|
$ 99.65 | |||||
| 2B | W11186526 | Orifice Assembly (right Front) |
|
Immediately | $ 99.68 | ||||
| 2C | W11186522 | Orifice Assembly (right Rear) |
|
Immediately | $ 99.30 | ||||
| 2D | W11186518 | Orifice Assembly (center) |
|
$ 99.35 | |||||
| 6A | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 48.41 | |||||
| 6B | W11643126 | Electrode, Burner (right Front & Center) (Replaces: W10669524) |
|
Immediately | $ 38.01 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 48.36 | |||||
| 8A | W10873134 | Valve, Gas (left Rear) (Replaces: W10831590) |
|
$ 272.65 | |||||
| 8B | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 195.14 | ||||
| 8C | W11233561 | Valve, Gas (right Rear & Center) (Replaces: W10566057) |
|
Immediately | $ 264.72 | ||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | W11436985 | Lp Conversion Kit (burners) (Replaces: W11397194) |
|
Immediately | $ 46.55 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- |
