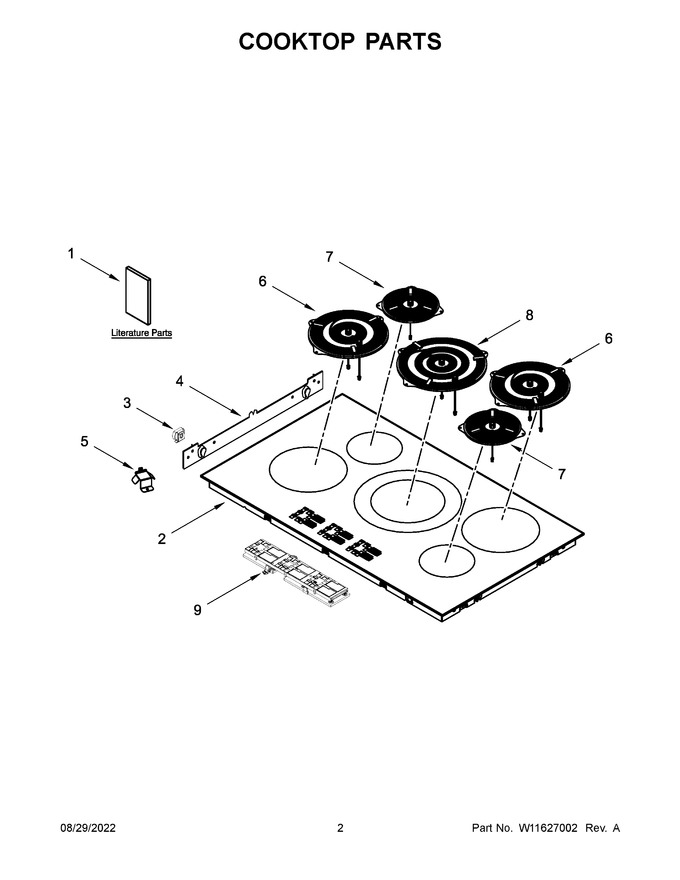

02 - Cooktop Parts
03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11362912 | Installation Instructions |
|
- | |||||
| 2 | W11589954 | Glass Cooktop Assembly (Replaces: W11267491) |
|
$ 951.38 | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11586461 | Element (6 Inch) (left Front & Right Rear) (Replaces: W11429952) |
|
Immediately | $ 225.06 | ||||
| 7 | W11560534 | Element (4 Inch) (left Rear & Right Front) (Replaces: W11429950) |
|
Immediately | $ 198.51 | ||||
| 8 | W11586463 | Element (9.5 Inch) (center) (Replaces: W11429957) |
|
$ 278.28 | |||||
| 9 | W11727259 | Hmi Board (Replaces: W11606110) |
|
$ 405.27 | |||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11267672 | Owner's Manual |
|
- | |||||
| 1C | W11202271 | Tech Sheet |
|
- |
