Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11612298 Energy Guide Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: W11484017) In-Stock Immediately $ 142.39

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 W11613482 Panel, Front (includes 8 & 9) (black)   (Replaces: W11528191) Special Order $ 418.67

5 W11763736 Access Panel (includes Hardware) (black)   (Replaces: W10441006) In-Stock Immediately $ 42.25

6 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

7 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

8 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

9 W11504190 Light, Pipe Appelez-nous -
10 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

11 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

12 W10827631 Access Panel & Insulation Assy (black)   (Replaces: W10369023) In-Stock Immediately $ 195.64

13 W10831329 Insulation, Toe Panel   (Replaces: W10519755) In-Stock Immediately $ 43.30

14 WPW10213953 Screw   (Replaces: W10711884) In-Stock Immediately $ 7.55

15 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

12A W10827632 Access Panel & Insulation Assy (white)   (Replaces: W10369025) In-Stock Immediately $ 163.70

15A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

1A W11532445 Owners Manual Appelez-nous -
1B W11532444 Tech Sheet Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: W11484018) In-Stock Immediately $ 142.24

4A W11613481 Panel, Front (includes 8 & 9) (white)   (Replaces: W11528189) Special Order $ 418.71

4B W11613483 Panel, Front (includes 8 & 9) (stainless)   (Replaces: W11528192) In-Stock Immediately $ 435.04

5A WPW10441007 Access Panel (includes Hardware) (white)   (Replaces: W10441007) Special Order $ 170.94


    View Diagram in Separate Window     Print Icon   Print Part List

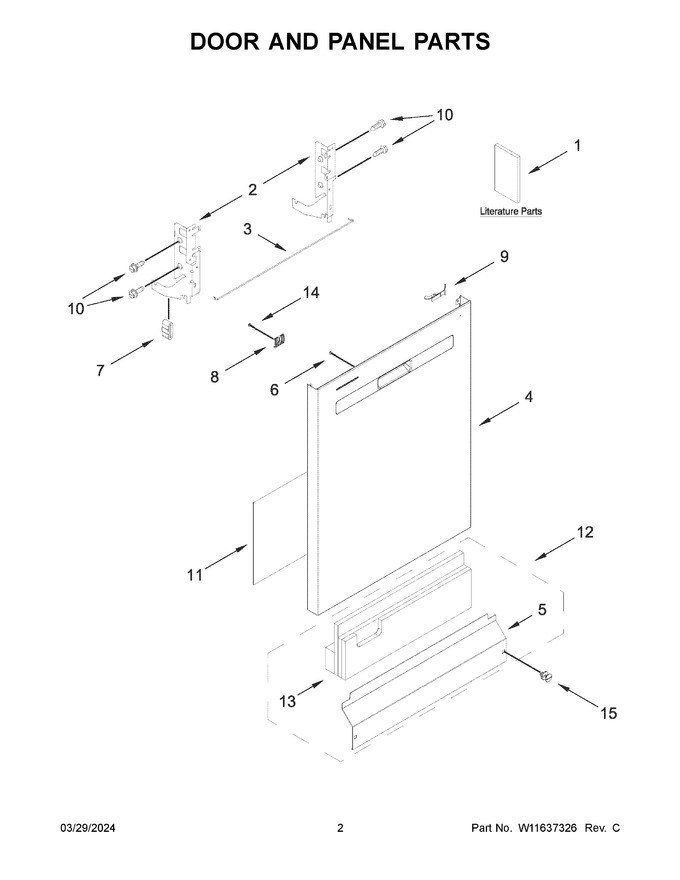

Diagram for WDP540HAMZ0
