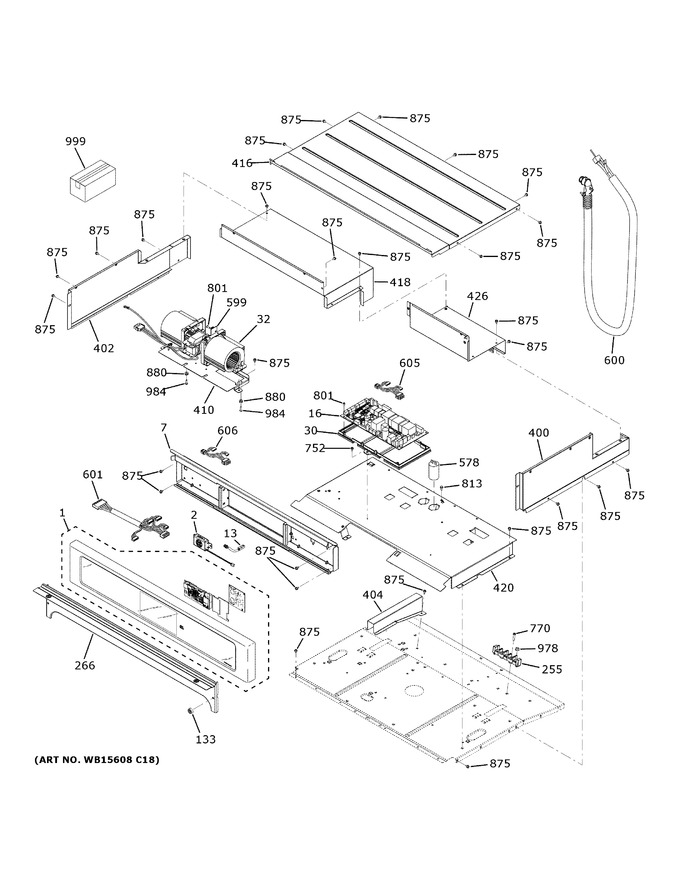

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB27X40426 | Stainless Ui Lcd Control W/ Wifi Board |
|
- | |||||
| 2 | WB27X33354 | Speaker 70c 3w |
|
- | |||||
| 7 | WB07X32471 | Control Panel Mounting Bracket |
|
- | |||||
| 13 | WB18X30704 | Jumper |
|
- | |||||
| 16 | WB27X33891 | Board Machine Control Rc17 |
|
- | |||||
| 30 | WB02X29179 | Board Relay Frame |
|
- | |||||
| 32 | WB26X31060 | Cooling Fan |
|
- | |||||
| 133 | WB03T10341 | Bumper Door |
|
- | |||||
| 255 | WB17T10024 | Block Terminal |
|
- | |||||
| 266 | WB07X32831 | Upper Vent Trim |
|
- | |||||
| 400 | WB34T10164 | Cover Top Right Edge |
|
- | |||||
| 402 | WB44T10126 | Cover Top Left Edge |
|
- | |||||
| 404 | WB34T10150 | Channel Upper Air Vent |
|
- | |||||
| 410 | WB37T10026 | Bracket Upper Fan Mount |
|
- | |||||
| 416 | WB34X28390 | Cover Housing Frt |
|
- | |||||
| 418 | WB24X32772 | Cover Top Rear |
|
- | |||||
| 420 | WB24X33028 | Rj45 Bracket |
|
- | |||||
| 426 | WB35T10273 | Cover Wire Rear |
|
- | |||||
| 578 | WG02F00227 | Capacitor Motor (Replaces: WB27T10662) |
|
$ 25.73 | |||||
| 599 | WB27T11463 | Board Fan Sensor |
|
- | |||||
| 600 | WB18T10578 | Optional 6 Ft Conduit |
|
- | |||||
| 600 | WB18X35246 | Conduit Wire Swo |
|
- | |||||
| 601 | WB18X32919 | Ui Com And Rj45 Harness |
|
- | |||||
| 605 | WB18X32920 | Main Harness Wire |
|
- | |||||
| 606 | WB18X32872 | Latch Com Harness Wire |
|
- | |||||
| 752 | WB01X21742 | Screw |
|
- | |||||
| 770 | WB1K5072 | Screw |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 813 | WS02X10087 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 880 | WB01T10128 | Grommet |
|
- | |||||
| 978 | WB1X1259 | Hex Nut |
|
- | |||||
| 984 | WB01T10130 | Screw 7-19 1/4hex 1/2in |
|
- | |||||
| 999 | 49-2000760 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-11161 | Pm Install Instructions |
|
- | |||||
| 999 | WG02A00297 | Lubricant Cleaner (Replaces: WB02T10303) |
|
$ 69.62 | |||||
| 999 | 49-2000791 | Pm Owners Manual |
|
- | |||||
| 999 | 31-10957 | Pm Install Instructions |
|
- | |||||
| 999 | 31-11159 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10882 | Instruction Install |
|
- | |||||
| 999 | 31-2000264 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-80597 | Manual U&c Tip Sheet |
|
- | |||||
| 999 | 31-2000181 | Pm Install Instructions |
|
- |
