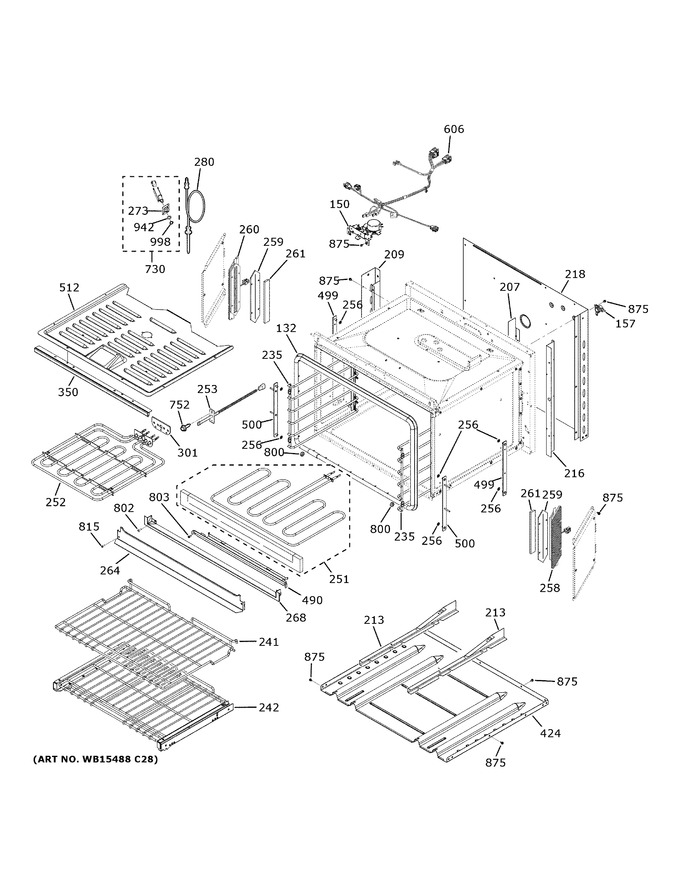

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
132	WB35X32825		Oven Door Gasket				$ 44.83
150	WB10X40032		Latch And Harness Asm		Appelez-nous	-
157	WB24T10164		Switch High Limit		Appelez-nous	-
207	WB34T10134		Divider Air Bottom		Appelez-nous	-
209	WB34X35265		Channel Rear		Appelez-nous	-
213	WB34T10163		Divider Air Bottom		Appelez-nous	-
216	WB34T10139		Divider Air Duct Right		Appelez-nous	-
218	WB34T10141		Duct Lower Rear Duct		Appelez-nous	-
235	WB48X21766		Guide Ovn Rack Lt		Appelez-nous	-
235	WB48X21765		Guide Ovn Rack Rt		Appelez-nous	-
241	WB48X34690		Oven Rack Flat 30"		Appelez-nous	-
242	WB48X34679		Rack Oven Slide Asm 30"		Appelez-nous	-
251	WB44X21667		Hidden Bake Element Kit		Appelez-nous	-
252	WB44X40787		Element Broil		Appelez-nous	-
253	WB21X10165		Sensor Asm		Appelez-nous	-
256	WB01T10107		Ladder Rack Bolt Retainer Clip		Appelez-nous	-
258	WB27X23582		Board Led Asm Rt		Appelez-nous	-
259	WB35X23584		Insulation Led		Appelez-nous	-
260	WB27X23581		Board Led Asm Lt		Appelez-nous	-
261	WB34X23583		Glass Led		Appelez-nous	-
264	WB07X21783		Trim Vent Lwr		Appelez-nous	-
268	WB07T10786		Trim Bottom Cabinet		Appelez-nous	-
273	WB2X8309		Probe Cover		Appelez-nous	-
280	WG02F05721		Meat Probe   (Replaces: WB20T10024)			Immediately	$ 63.86
301	WB35X21972		Gasket Broil Element		Appelez-nous	-
350	WB07T10787		Trim Broil Element (bk)		Appelez-nous	-
424	WB34T10158		Cover Bottom Air Duct		Appelez-nous	-
490	WB55T10197		Cover Hidden Bake		Appelez-nous	-
499	WB34X30789		Ladder Rack Bolt Asm		Appelez-nous	-
500	WB34X36185		Cavity Rack Brace		Appelez-nous	-
512	WB37T10024		Plate - Top Oven		Appelez-nous	-
606	WB18X40046		Harness Wire Latch Com		Appelez-nous	-
730	WB18X23585		Meat Probe Receptacle And Harness		Appelez-nous	-
752	WB1K5062		Screw St8-18x.500trbrni		Appelez-nous	-
800	WB01X21270		Rack Guide Nut		Appelez-nous	-
802	WG02A00783		Trim Screw-blk   (Replaces: WB1K5173)				$ 3.57
803	WB01X21742		Screw		Appelez-nous	-
815	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
942	WB1X5573		Washer		Appelez-nous	-
998	WG02A00927		Nut Meat Probe   (Replaces: WB1X5572)				$ 67.26
